Check Wrought Iron Flange Dimensions And BS En 10241 Wrought Iron Pipe Fittings Weight Chart.


Apart from the alloy being soft, ductile and magnetic, these Wrought Iron Fittings have high elasticity and tensile strength. Due to these properties, wrought iron can be heated and reheated along with being worked into various shapes.

European Standard strong EN 10241 designates requirements for screw threaded BS EN 10241 Wrought Iron Pipe Fitting of nominal sizes from DN 6 to DN 150. The EN 10241 is applicable to screw threaded Wrought Iron Door Fittings which are often used in the transportation as well as the distribution of media such as liquid or gas.


ASME B16.9 Wrought Iron Fittings
ASME B16.9 Wrought Iron Fittings

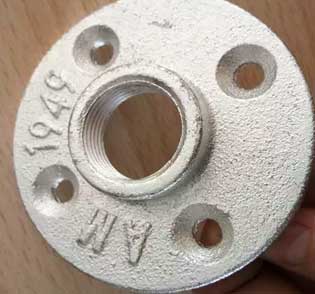

ANSI B16.5 Wrought Iron Flange
ANSI B16.5 Wrought Iron Flange
BS En 10241 Wrought Iron Pipe Fittings
BS En 10241 Wrought Iron Pipe Fittings


What Is Wrought Iron Fittings?


Typically, a Wrought Iron Floor Flange is used to connect threaded rigid or IMC conduits to surfaces that are flat. The threaded hub of this flange is what permits a pipe to be screwed in and to be securely fastened. In addition to being used for smoke detectors, a floor Wrought Iron Flange could also be used to hang security cameras, fire alarm signals/strobes as well as other low-voltage and electronic signalling devices from ceilings. Similar to socket Weld fittings, Black Wrought Iron Threaded Fittings are primarily used for small Bore Piping systems. These pipes usually have a nominal diameter of NPS 2 or smaller.
