Check Buttweld MSS SP-75 Elbow Chemical Composition And MSS SP 75 Weld Fittings Mechanical Properties.


This standard covers factory produced seamless as well as electric fusion-welded MSS SP-75 Fittings. The materials used to manufacturer these fittings are usually carbon steel or low-alloy steel grades, depending on the application. Typically the butt-welding pipe fittings such as MSS SP 75 Tee are designed with the intention of being used in not only high pressure oil and gas transmission and distribution systems, but they are also used in other systems including compressor stations, pipelines, metering and regulating stations, as well as mains.


MSS SP-75 Fittings

MSS SP-75 Fittings

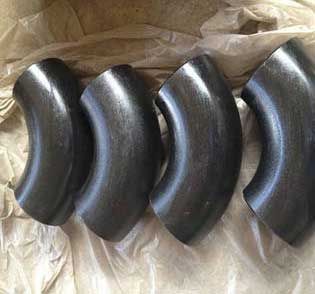

Buttweld MSS SP-75 Elbow

Buttweld MSS SP-75 Elbow

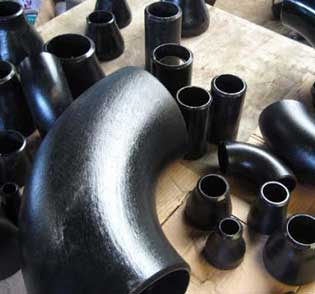

A860 MSS SP 75 Material

A860 MSS SP 75 Material


MSS SP-75 Fittings

Specification MSS SP 75 is a standard for high-test, wrought grade butt-welded fittings for e.g. 3R elbows, long-radius elbows, reducing tees, straight tees, caps and reducers.


A860 MSS SP 75 Material Chemical Composition


A860 MSS SP 75 Material Chemical Composition

Buttweld MSS SP-75 Elbow Mechanical Properties


MSS SP 75 Class Yield Strength Tensile Strength Elongation Charpy Test
Min. psi Min. psi min. % Ave. Energy absorbed @ 20°F

ASTM A860 WPHY 42

42000 60000 25 ≥20ft*lbs
WPHY 46 46000 63000 25
ASTM A860 WPHY 52 52000 66000 25
ASTM A860 WPHY 56 56000 71000 20
ASTM A860 WPHY 60 60000 75000 20
ASTM A860 WPHY 65 65000 77000 20
ASTM A860 WPHY 70 70000 82000 18

Manufacturer Of A860 MSS SP 75 Material In Mumbai, India, Specification Of MSS SP 75 Pipe Reducers, Check MSS SP 75 Tee Pressure Rating.


MSS SP 75 Weld Fittings Specification


Standard Specification : MSS SP-75 Fittings
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Application: Nuclear Power Plant
Natural Gas Industry
Water Pipeline Industry
Fabrication Industry
Chemical Industry
Oil And Gas Industry
Coating Fitting Faces : Oil Black Paint, Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint, Yellow Transparent
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: JIS B2313, ANSI B16.9, MSS-SP-43 Type b, ANSI B16.28, JIS B2312, MSS-SP-43 Type A
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Fitting Machining Equipment: Bending machine, Electric bevelling machine, Pushing Machine, Press machine, Sand-blasting machine etc

What Is MSS SP-75 Fittings?


Based on their yield strength values, the MSS SP 75 Weld Fittings are categorized into 7 different WPHY classes i.e 42, 46, 52, 56,60, 65 and 70. The term WPHY is always associated with MSS SP 75 specified fitting. The term is split into 2 different parts where WP has been abbreviated as either wrought pipe or wrought plate, while HY is an abbreviation for high yield components for e.g. MSS SP 75 Pipe Reducers. The MSS SP 75 is a standard that specifies the chemical composition, A860 MSS SP 75 Material and tensile properties, dimensions, tolerances, ratings, heat treatment, notch toughness as well as manufacturing process and marking of quality butt welded pipe fittings for pipes that have a diameter of NPS 60 and smaller. Keeping in accordance with the MSS SP-75 standard, all fittings including the Buttweld MSS SP-75 Elbow manufactured are required to be designed in such a manner that they support the field hydrostatic pressure test at a certain pressure level.


MSS SP 75 Pipe Reducers Pressure Rating


MSS SP-75 Fittings Pressure Rating
NPS
(inch)
Pipe Sch. OD
(inch)
Wall
Thick.
(in)
Temperature (oF)
100 200 300 400 500 600
(Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850

Held Wide Stock of MSS SP 75 Pipe Fitting, MSS SP 75 Elbow Stockist in Mumbai, Suppliers Of MSS SP-75 Buttweld Pipe Fittings In Mumbai, India.


Available Type Of MSS SP 75 Pipe Fitting


MSS SP-75 Elbow

MSS SP-75 Elbow

MSS SP-75 Tee

MSS SP-75 Tee

MSS SP-75 Reducer

MSS SP-75 Reducer

MSS SP-75 End Cap

MSS SP-75 End Cap

MSS SP-75 Stub End

MSS SP-75 Stub End

MSS SP-75 Threaded Plug

MSS SP-75 Threaded Plug

MSS SP-75 Socket Weld Union

MSS SP-75 Socket Weld Union

MSS SP-75 Cross

MSS SP-75 Cross

MSS SP-75 U Bend

MSS SP-75 U Bend

MSS SP-75 Lateral Tee

MSS SP-75 Lateral Tee


View MSS SP 75 90 Degree Elbows Dimensions Chart In Millimeter, Accept All Small/ Large Orders MSS SP-75 End Cap, We Offer MSS SP-75 Long Stub End With Best Quality.

MSS SP 75 Elbow Dimension


ANSI b16.9 fittings Sizes Nominal ASME b16 9 Pipe Fitting Outside
Diameter Y
Wall Thickness T
(Pipe Elbow Schedule)
45 Deg Long Radius Elbow Centre to Face B 45 Deg Short Radius Elbow
Weight
90 Deg Long Radiu Elbow Centre to Face A 90 Deg Long Radiu Elbow Weight 90 Deg Short Radius Elbow Centre to Face A 90 Deg Short Radius Elbow Weight Chart
mm in mm mm Schedule mm kg mm kg mm kg
15 1/2” 21.3 2.78 STD 15.9 0.04 38.1 0.08
3.73 X.S 15.9 0.05 38.1 0.10
20 3/4” 26.7 2.87 STD 11.1 0.04 28.6 0.08
3.91 X.S 11.1 0.05 28.6 0.11
25 1” 33.4 3.38 STD 22.2 0.09 38.1 0.15 25.4 0.11
4.55 X.S 22.2 0.11 38.1 0.19 25.4 0.14
32 11/4” 42.2 3.56 STD 25.4 0.14 47.6 0.28 31.75 0.18
4.85 X.S 25.4 0.2 47.6 0.39 31.75 0.24
40 11/2” 48.3 3.68 STD 28.6 0.2 57.1 0.4 38.1 0.26
5.08 X.S 28.6 0.25 57.1 0.5 38.1 0.35
50 2” 60.3 3.91 STD 34.9 0.36 76.2 0.72 50.8 0.5
5.54 X.S 34.9 0.5 76.2 1.0 50.8 0.68
65 21/2” 73.0 5.16 STD 44.4 0.73 95.2 1.46 63.5 0.95
7.01 X.S 44.4 0.91 95.2 1.82 63.5 1.27
80 3” 88.9 5.49 STD 50.8 1.1 114.3 2.18 76.2 1.45
7.62 X.S 50.8 1.45 114.3 2.86 76.2 1.95
100 4” 114.3 6.02 STD 63.5 2.1 152.4 4.2 101.6 2.8
8.56 X.S 63.5 2.9 152.4 5.7 101.6 3.9
125 5” 141.3 6.65 STD 79.4 3.4 190.0 6.8 127.0 4.8
9.5 X.S 79.4 5.0 190.0 10.0 127.0 6.5
150 6” 168.3 7.11 STD 95.2 5.1 229.0 10.1 152.4 6.8
10.97 X.S 95.2 7.7 229.0 15.3 152.4 10.2
200 8” 219.1 8.18 STD 127.0 10.2 305.0 20.4 203.0 13.6
12.7 X.S 127.0 15.5 305.0 30.9 203.0 20.9
250 10” 273.9 9.27 STD 159.0 18.1 381.0 36.1 254.0 24.1
12.7 X.S 159.0 24.4 381.0 48.8 254.0 32.5
300 12” 323.9 9.52 STD 190.0 26.6 457.0 53.1 305.0 35.4
12.7 X.S 190.0 35.0 457.0 70.0 305.0 46.7
350 14” 355.6 9.52 STD 222.0 34.1 533.0 68.1 356.0 45.4
12.7 X.S 222.0 45.0 533.0 90.0 356.0 60.0
400 16” 406.4 9.52 STD 254.0 45.0 610.0 89.3 406.0 59.5
12.7 X.S 254.0 59.0 610.0 118.0 406.0 78.7
450 18” 457.0 9.52 STD 286.0 56.5 686.0 113.0 457.0 75.6
12.7 X.S 286.0 75.0 686.0 150.0 457.0 100.0
500 20” 508.0 9.52 STD 318.0 85.0 762.0 140.0 508.0 93.5
12.7 X.S 318.0 112.5 762.0 186.0 508.0 124.0
600 24” 610.00 9.52 STD 381.0 101.5 914.0 203.0 610.0 135.0
12.7 X.S 381.0 134.5 914.0 269.0 610.0 179.0

Refer MSS SP 75 Weld Eccentric Reducer Weight Chart, Fast Delivery On MSS SP-75 End Cap, ISO Approved Manufacturers MSS SP-75 Fittings In India.

MSS SP-75 Buttweld Pipe Fittings Weight Chart

MSS SP-75 Buttweld Pipe Fittings Weight Chart
