Buttweld MS Pipe Fittings Manufacturers In India, Specification Of Mild Steel 90 Degree Elbow.


As opposed to higher carbon steel grades, mild steel is quite malleable, even when cold. Hence, along with having high tensile strength and impact strength properties, it can be easily formed into Mild Steel Fittings. When cold, carbon steel grades that have a higher content of carbon usually shatter or crack under stress. In order to improve its corrosion resistance properties or to make it long-lasting and rustproof, MS Pipe Fittings are often galvanised or coated with the right paint. In addition to the aforementioned properties, what makes Mild Steel Weld Fittings more attractive to many buyers is the fact that this alloy is relatively cheaper than most steels grades. Primarily used to change the direction of the flow, Mild Steel Buttweld Fittings produced under specification ANSI / ASME B16. 9.

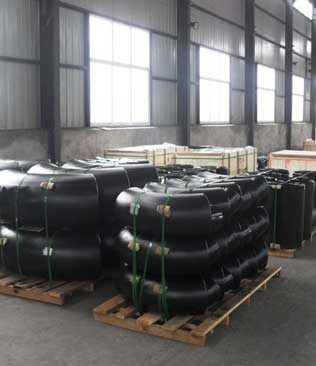

Mild Steel Fittings
Mild Steel Fittings
MS Pipe Fittings
MS Pipe Fittings
Mild Steel 90 Deg Elbow
Mild Steel 90 Deg Elbow


Mild Steel Threaded Fittings Specification


Standard Specification : Mild Steel Fittings
Coating Fitting Faces : Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint
Fitting Machining Equipment: Bending machine, Pushing Machine, Press machine, electric bevelling machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Chemical Industry
Water Pipeline Industry
Nuclear Power Plant
Natural Gas Industry
Fabrication Industry
Oil And Gas Industry

What Is Mild Steel Fittings?


This fitting is a weldable pipe that permits permit branching off, a reduction in pipe size as well as an attachment for auxiliary equipment. Similar to buttweld fittings, a Mild Steel 90 Degree Elbow permits for change in the flow of direction by an angle of 90 degrees. As the name suggests, Mild Steel Threaded Fittings have internal threads that provide for a quick and easy connection method, especially for pipes whose bore size is small or where the nominal diameter of the pipe is NPS 2 or smaller.


Check Mild Steel Threaded Fittings Dimensions And Mild Steel Socket Weld Fittings Weight Chart, Buy Mild Steel Screwed Pipe Fittings at factory price in Mumbai, India.


Black Mild Steel Elbow Dimension


Black Mild Steel Elbow Dimension

NPS in millimeter A in millimeter D in millimeter
15 34 30
20 39 36
25 43 41
32 46 50
40 52 58
50 60 71
65 70 88
80 79 100
100 98 126
150 134 180

Plain Mild Steel Tee Dimension


Plain Mild Steel Tee Dimension

NPS in millimeter A in millimeter D in millimeter
15 64 30
20 70 36
25 79 41
32 92 51
40 100 58
50 117 71
65 140 88
80 157 100
100 195 126
150 264 180

Steel High Mild Steel Cross Dimension


Steel High Mild Steel Cross Dimension

NPS in millimeter A in millimeter D in millimeter
15 64 30
20 67 35
25 77 41
32 90 51
40 102 58

Fully Killed Mild Steel Plug Dimension


Fully Killed Mild Steel Plug Dimension

NPS in millimeter A in millimeter D in millimeter
15 24 13
20 27 15
25 31 19
32 35 24
40 37 27
50 45 33
65 45 34
80 45 38
100 51 46

Mild Steel Screwed Pipe Fittings Weight Chart


Mild Steel Screwed Pipe Fittings Weight Chart

Galvanised Mild Steel Pipe Fittings Suppliers In India, We provide Black Mild Steel Pipe Fittings with instant delivery, Stockist Of Compression Fittings For Mild Steel Pipe.


Types Of Buttweld MS Pipe Fittings


Mild Steel Elbow

Mild Steel Elbow

Mild Steel Tee

Mild Steel Tee

Mild Steel Reducer

Mild Steel Reducer

Mild Steel End Cap

Mild Steel End Cap

Mild Steel Stub End

Mild Steel Stub End

Mild Steel Threaded Plug

Mild Steel Threaded Plug

Mild Steel Socket Weld Union

Mild Steel Socket Weld Union

Mild Steel Cross

Mild Steel Cross

Mild Steel U Bend

Mild Steel U Bend

Mild Steel Lateral Tee

Mild Steel Lateral Tee


Pressure Rating Of Mild Steel Weld Fittings, View Mild Steel Fitting Size Chart, Mild Steel Screwed Pipe Fittings Manufacturers In India.

MS Fitting Pressure Rating


MS Fitting Pressure Rating

Black Mild Steel Pipe Fittings Size Chart


Products Size
MS Cups 1/2'' NB to 14'' NB
MS Stub Ends 1/2'' NB to 14'' NB
MS Elbow 1/2'' NB to 14'' NB
MS Reducers 1'' NB to 14'' NB
MS Tees 1'' NB to 14'' NB
MS Socket Weld Upto 2'' NB
MS Nipples Upto 4''
MS Couplings Upto 4''NB

Refer Chemical Composition Of Mild Press Fittings, Contact us today For Buy Mild Reducer, Mild Tee Mechanical Properties, Mild Pipe Cap In India.

Mild Steel Socket Weld Fittings Chemical Composition


Element Content (%)
Iron, Fe Balance
Chromium, Cr 18-20
Nickel, Ni 11-15
Molybdenum, Mo 3-4
Manganese, Mn 2
Silicon, Si 1
Phosphorous, P 0.045
Carbon, C 0.03
Sulfur, S 0.03

Galvanised Mild Steel Pipe Fittings Mechanical Properties


Properties Metric Imperial
Tensile strength 595 MPa 86300 psi
Yield strength 260 MPa 37700 psi
Modulus of elasticity 200 GPa 29000 ksi
Poisson’s ratio 0.27-0.30 0.27-0.30
Elongation at break (in 50 mm) 55% 55%
Hardness, Rockwell B 85 85
