ASTM B564 Inconel 625 Slip on Flanges Equivalent Material, Werkstoff No. 2.4816 Alloy 625 Blind Flange Specification.


NAS 625 or as referred to by its other trade names i.e. Inconel 625, NCF 625 and UNS N06625 is a nickel based alloy. Similar to other nickel based alloys, the Inconel 625 Flanges produced under specification ASTM B564 are to conform to several parameters with regards to its chemistry, testing and mechanical properties. Whereas each specimen of these flanges is to be administered a nondestructive ultrasonic test along with a tension test.

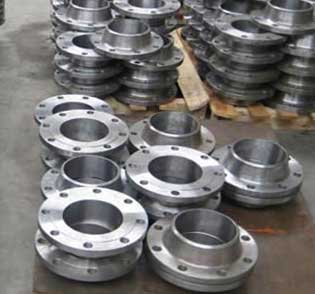

ASME B16.5 Inconel 625 Flanges
ASME B16.5 Inconel 625 Flanges
Werkstoff No. 2.4816 Alloy 625 Blind Flange
Werkstoff No. 2.4816 Alloy 625 Blind Flange

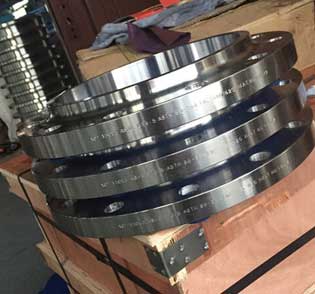

ASTM B564 Inconel 625 Slip on Flanges
ASTM B564 Inconel 625 Slip on Flanges

Inconel 625 Fittings

Along with the mechanical properties of UNS N06600 Alloy 625 Flanges such as the tensile strength, yield strength, and elongation, the grain size of the alloy is determined as well.


Inconel 625 NPT Flanges Equivalent


STANDARD WERKSTOFF NR. UNS JIS BS GOST EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NiCr23Fe

What Is Inconel 625 Flanges?


The Matrix of the alloy has been stiffened on account of provisions made by the addition of elements molybdenum and niobium. These two elements result in the Inconel 625 Weld Neck Flanges gaining a higher tensile strength. Inconel 625 not only resists a wide range of severely corrosive environments but also offers resistance at elevated temperature settings. Applications of the ASTM B564 Inconel 625 Slip on Flanges includes its use as parts in chemical and garbage incinerator plants. The alloy serves as an excellent general purpose material for use elevated temperature where oxidation is considered to be a problem area. Therefore the Werkstoff No. 2.4816 Alloy 625 Blind Flange particularly finds application in the aerospace as well as the offshore oil & gas industries. Due to the alloys high pitting, crevice and stress corrosion resistance properties, the Alloy 625 Forging Flanges are also used in Flue gas desulphurisation plant, flare stacks, phosphoric acid production and nuclear fuel processing, offshore sour oil and gas production and in waste incineration industries.


ASTM B564 Inconel 625 Slip On Flanges Specification


Specification : Inconel 625 Flanges
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Production Process: Heat Treated, Machined, Forged
Coating Flanges Faces : Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Standards: JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) Flanges
Common Types of Flanges : Flanges 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Supporting Flanges Material: Flanges Bolts, Ring Joint, Gasket
Application: Fabrication Industry
Water Pipeline Industry
Chemical Industry
Natural Gas Industry
Oil And Gas Industry
Nuclear Power Plant
Design For Size: EN, ASA, ASME, BS, PN, DIN, JIS, ANSI
Flanges Machining Equipment: Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc
Connect Type: RF, FF, RTJ, LMF, SMF, LJF
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS

Buy Alloy 625 Forging Flanges With Best Price & Fast Delivery, Inconel 625 Weld Neck Flanges Chemical Composition, UNS N06600 Alloy 625 Flanges Mechanical Properties.


Werkstoff No. 2.4816 Alloy 625 Blind Flange Chemical Composition


Grade C Mn Si S Cu Fe Ni Cr
Inconel 625 0.10 max 0.50 max 0.50 max 0.015max 5.0 max 58.0 min 20.0 – 23.0

UNS N06600 Alloy 625 Flanges Mechanical Properties


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625 8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Nickel Alloy 625 Forgings Flanges Material Properties, Inconel 625 Orifice Flanges Manufacturer In India.


Visit Our ASME B16.5 625 Inconel RTJ Flanges Mill in India, Pressure Rating Of Inconel 625 NPT Flanges.

ASTM B564 Inconel 625 Flanges Pressure Rating


ASME B16.5 Inconel 625 Flanges Pressure Rating
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Since 1997, We Have Been Supplyed ANSI B16.5 Incoloy 625 Forged Flanges In Mumbai, Get instant delivery of ASTM B564 Inconel 625 SORF Flanges In India, Contact us today For Buy Inconel 625 Flanges With Best Price.

Types Of Alloy 625 Forging Flanges


Inconel 625 Reducing Flange

Inconel 625 Reducing Flanges

Inconel 625 Weld Neck Flange

Inconel 625 Weld Neck Flanges

Inconel 625 Blind Flange

Inconel 625 Blind Flanges

Inconel 625 Flat Face Flange

Inconel 625 Flat Face Flanges

Inconel 625 RTJ Flange

Inconel 625 RTJ Flanges

Inconel 625 Raised Face Flange

Inconel 625 Raised Face Flanges

Inconel 625 Socket Weld Flange

Inconel 625 Socket Weld Flanges

Inconel 625 Slip On Flange

Inconel 625 Slip On Flanges

Inconel 625 Orifice Flange

Inconel 625 Orifice Flanges

Inconel 625 Spectacle Flange

Inconel 625 Spectacle Flanges
