Check Alloy 625 Fittings Specification And Get Werkstoff No. 2.4856 Inconel 625 Buttweld Fittings Tested Materials.

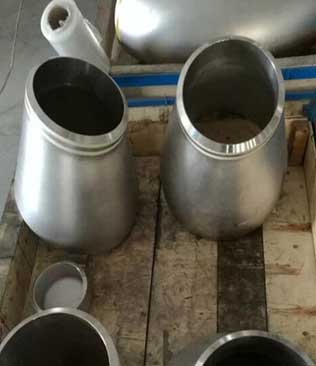

The Inconel 625 Fittings are considered to be an excellent general purpose material for use at elevated temperature, especially if high tensile strength and resistance to oxidation are considered to be primary requirements. Therefore Werkstoff No. 2.4856 Inconel 625 Buttweld Fittings finds application in the aerospace industry along with offshore oil & gas industries. Inconel 625 fittings present excellent resistance properties to a variety of corrosive media.

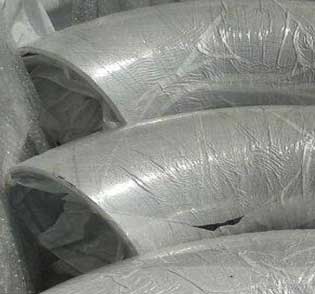

ASME B16.9 Inconel 625 Fittings
ASME B16.9 Inconel 625 Fittings
JIS NCF Alloy 625 Fittings
JIS NCF Alloy 625 Fittings
Inconel 625 Buttweld Fittings
Inconel 625 Buttweld Fittings


Check the market price before you Buy Inconel 625 Pipe Fittings, Manufacturer Of UNS N06625 Inconel 625 Forged Fittings In Mumbai, India, Nickel Alloy Inconel 625 Fittings Equivalent.


What Is Inconel 625 Fittings?


Along with demonstrating excellent resistance to crevice corrosion, pitting, stress related corrosion cracking, corrosion fatigue and erosion corrosion, the UNS N06625 Inconel 625 Forged Fittings have the ability to maintain its mechanical properties even up to a temperature of about 450 ºC. Alloy 625 is highly resistant to a wide range of organic and mineral acids as well. The JIS NCF 625 Alloy 625 Buttweld Elbow is one such nickel alloy that has the superior corrosion resistance characteristics in conjunction with good resistance to sulphides and chlorides at high temperatures. The addition of niobium and tantalum within the matrix of the Inconel 625 Pipe Fittings acts in conjunction with the molybdenum to provide a high strength alloy, that too without the need for additional heat treatment given to the alloy.
Components like the Alloy 625 Fittings are used in applications such as exposure to seawater and where high mechanical stresses are required. Moreover, these fittings could be used in oil and gas production where hydrogen sulphide and elementary sulphur exist at a temperature exceeding150C.


Alloy 625 Fittings Specification


Standard Specification : Inconel 625 Fittings
Coating Fitting Faces : Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Natural Gas Industry
Water Pipeline Industry
Fabrication Industry
Nuclear Power Plant
Chemical Industry
Oil And Gas Industry

View our JIS NCF 625 Alloy 625 Buttweld Elbow inventory in Mumbai, Alloy 625 Buttweld Elbow Chemical Composition And Inconel 625 Seamless Fittings Mechanical Properties.


Inconel 625 Buttweld Fittings Types


Inconel 625 U Bend

Inconel 625 U Bend

Inconel 625 Socket Weld Union

Inconel 625 Socket Weld Union

Inconel 625 Cross

Inconel 625 Cross

Inconel 625 Lateral Tee

Inconels 625 Lateral Tee

Inconel 625 Elbow

Inconels 625 Elbow

Inconel 625 Tee

Inconels 625 Tee

Inconel 625 Reducer

Inconels 625 Reducer

Inconel 625 End Cap

Inconels 625 End Cap

Inconel 625 Stub End

Inconels 625 Stub End

Inconel 625 Threaded Plug

Inconels 625 Threaded Plug


Get Free Quote 625 Inconel Welded Fitting, Contact us today for buy Inconel 625 Buttweld Fittings In India, Suppliers Of Inconel 625 Pipe Cap.

Inconel 625 Pipe Fittings Equivalent


STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 625 2.4856 N06625 NCF 625 NA 21 ХН75МБТЮ NC22DNB4M NC22DNB4M

We provide BW Inconel 625 Reducer In-House Cutting, Refer Alloy 625 Reducing Tee And UNS N06625 Nickel Alloy Butt weld SMLS Fitting Pressure Rating.

UNS N06625 Inconel 625 Forged Fittings Chemical Composition


Grade C Mn Si S Cu Fe Ni Cr
Inconel 625
0.10 maximum 0.50 maximum 0.50 maximum 0.015maximum 5.0 maximum 58.0 minimum 20.0 – 23.0

Inconel 625 Seamless Fittings Mechanical Properties


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 625
8.4 g/cm3 1350 °C (2460 °F) Psi – 1,35,000 , MPa – 930 Psi – 75,000 , MPa – 517 42.5 %

Nickel Alloy Inconel 625 Fittings Physical Properties


Density lb/cu in 0.305
  gram/cc 8.44
Melting Range °F 2350
  °C 1290
Specific Heat Btu/lb°F (J/kg°C)

  0°F (-18°C) 0.096(402)
  70°F (21°) 0.098(410)
  200°F (93°C) 0.102(427)
  400°F (204°C) 0.109(456)
  600°F (316°C) 0.115(481)
  800°F (427°C) 0.122(511)
  1000°F (538°C) 0.128(536)
  1200°F (649°C) 0.135(565)
  1400°F (760°C) 0.141(590)
  1600°F (871°C) 0.148(620)
  1800°F (982°C) 0.154(645)
  2000°F (1093°C) 0.160(670)
Permeability at 200 Oersted (15.9 kA/m) 1.0006
Curie Temperature °F <-320
  °C -196

Inconel 625 Welded Fittings Pressure Rating


Inconel 625 Fittings Pressure Rating
NPS
(inch)
Pipe Sch. OD
(inch)
Wall
Thick.
(in)
Temperature (oF)
100 200 300 400 500 600
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850
