Refer Hastelloy C276 Pipe Flanges Pressure Rating, Specification Of UNS N10276 Hastelloy Slip On Flange.


One of the benefits of using the Hastelloy C276 Flanges is that the alloy presents a remarkable corrosion resistance properties across a very wide range of processing environments. Due to its remarkable displays properties such as resistance to pitting and crevice corrosion as well as stress corrosion cracking and oxidising atmospheres up to 1040°C, the Alloy Werkstoff No. 2.4819 Flange is used in highly corrosive environments. Nickel components like Hastelloy C276 flanges are produced under specification ASTM B564.


ASME B16.5 Hastelloy C276 Flanges
ASME B16.5 Hastelloy C276 Flanges

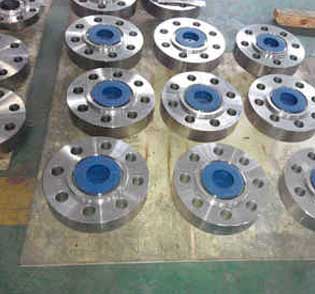

UNS N10276 Hastelloy Slip On Flange
UNS N10276 Hastelloy Slip On Flange
Hastelloy C276 Blind Flanges
Hastelloy C276 Blind Flanges


UNS N10276 Flange Pressure Rating


ASME Hastelloy C276 Flanges Pressure Rating
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Hastelloy Slip On Flange Specification


Specification : Hastelloy C276 Flanges
Production Process: Heat Treated, Machined, Forged
Coating Flange Faces : Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Standards: ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ASME B16.47 (Series A, Series B) Flanges
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Connect Type: RF, FF, RTJ, LMF, SMF, LJF
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flange : Flanges 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Supporting Flange Material: Gasket, Flange Bolts, Ring Joint
Application: Nuclear Power Plant
Chemical Industry
Fabrication Industry
Natural Gas Industry
Oil And Gas Industry
Water Pipeline Industry
Design For Size: PN, DIN, JIS, ANSI, EN, ASA, ASME, BS
Flange Machining Equipment: Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc

What Is Hastelloy C276 Flanges?


Apart from the chemical composition and grain size, mechanical properties of the Hastelloy C276 Socket Weld Flanges like tensile strength, yield strength, and elongation are determined as well. In addition, each specimen of these flanges is required to be subjected to both a tension test as well as a nondestructive ultrasonic test.
Since the alloy has a low content of carbon, it would imply that the Hastelloy UNS N10276 Slip On Flange is resistant to the formation of grain boundary precipitates in the heat affected weld zone, Therefore, Hastelloy C276 flanges have the ability to maintain its unique corrosion resistance properties, especially in an as-welded condition.
Usually, ASTM B564 UNS N10276 Flanges Pipe Flanges are selected for applications where properties such as resistance to wet chlorine gas, hypo-chlorites and many other aggressive chemicals are considered to be important. Furthermore, the Hastelloy C276 Blind Flanges also offers exceptional resistance to strong solutions of oxidising salts for e.g. ferric and cupric chlorides.


Buy Werkstoff No. 2.4819 Hastelloy WN Flange At Affordable Prices, PDO approved Alloy UNS N10276 ASTM B564 Pipe Flanges Manufacturers In Mumbai, India, Check Hastelloy C276 Blind Flanges Dimensions.


Hastelloy C276 SORF Flanges Dimensions


CLASS NPS Hastelloy C276 SORF Flange Hastelloy C276 NPT Flange Hastelloy C276 SW Flange Hastelloy C276 Loose Flange Hastelloy C276 BLRF Flange Hastelloy C276 WN Flange
150# ½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
3 3 3 3 3 3
3 3 3 3 4 4
2 5 5 5 5 5 6
8 8 8 8 7 10
3 9 9 9 9 9 11.5
11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268
CLASS NPS SORF NPT Flanges SW Loose BLRF WN
300# ½ 2 2 3 2 2 2
¾ 3 3 3 3 3 3
1 3 3 3 3 4 4
4.5 4.5 4 4.5 6 5
6.5 6.5 6 6.5 7 7
2 7 7 7 7 8 9
10 10 10 10 12 12
3 13 14 13 14.5 16 18
17 17 17 17 21 20
4 23.5 24 22 24 28 26.5
5 29 31 28 28 37 36
6 39 39 39 39 50 45
8 58 58 58 58 81 69
10 81 81 81 91 124 100
12 115 115 115 140 185 142
14 165 165 165 190 250 206
16 210 220 190 234 315 250
18 253 280 250 305 414 320
20 315 325 315 375 515 400
22 370 370 370 435 640 465
24 490 490 475 550 800 580
CLASS NPS SORF NPT Flanges SW Loose BLRF WN
600# ½ 2 2 2 2 3 3
¾ 3 3 3 3 4 4
1 4 4 4 4 4 4
5 5 5 5 6 6
7 7 7 7 8 8
2 9 9 9 9 10 12
13 13 13 12 15 18
3 16 16 16 15 20 23
21 21 21 20 29 26
4 37 37 37 36 41 42
5 63 63 63 63 68 68
6 80 80 80 78 86 81
8 115 15 15 112 140 120
10 177 177 177 195 231 190
12 215 215 215 240 295 226
14 259 259 259 290 378 347
16 366 366 366 400 527 481
18 476 476 476 469 665 555
20 612 612 612 604 855 690
22 590 590 590 670 1000 720
24 876 876 876 866 1250 977

Hastelloy C276 Socket Weld Flanges Equivalent Material, Also Check DIN No. 2.4819 Threaded Flange Mechanical Properties, Hastelloy C276 Plate Flange Chemical Composition.


Werkstoff No. 2.4819 Hastelloy WN Flange Mechanical Properties


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Hastelloy C276 8.89 g/cm3 1370 °C (2500 °F) Psi – 1,15,000 , MPa – 790 Psi – 52,000 , MPa – 355 40 %

DIN No. 2.4819 Threaded Flange Chemical Composition


Grade C276
C 0.010 maximum
Mn 1.00 maximum
Si 0.08 maximum
S 0.03 maximum
Co 2.50 maximum
Ni 50.99 minimum
Cr 14.50 – 16.50
Fe 4.00 – 7.00
Mo 15.00 – 17.00
P 0.04 maximum

Hastelloy C276 RF Flanges Equivalent, Suppliers Of UNS N10276 ASTM B564 Flanges In India, Get Free Quote UNS N10276 ASTM B564 Flanges.

Hastelloy C276 Blind Flanges Equivalent


STANDARD WERKSTOFF NR. UNS JIS GOST EN OR
Hastelloy C276 2.4819 N10276 NW 0276 ХН65МВУ NiMo16Cr15W ЭП760

View Hastelloy C276 Flanges Weight Chart, Accept All Small/ Large Orders Of Hastelloy C276 Slip On Flange, Buy Hastelloy C276 Blind Flanges With Best Price And Fast Delivery.

Types Of Hastelloy C276 Pipe Flanges


Hastelloy C276 Blind Flange

Hastelloy C276 Blind Flanges

Hastelloy C276 Flat Face Flange

Hastelloy C276 Flat Face Flanges

Hastelloy C276 Reducing Flange

Hastelloy C276 Reducing Flanges

Hastelloy C276 Weld Neck Flange

Hastelloy C276 Weld Neck Flanges

Hastelloy C276 Socket Weld Flange

Hastelloys C276 Socket Weld Flanges

Hastelloy C276 Slip On Flange

Hastelloys C276 Slip On Flanges

Hastelloy C276 RTJ Flange

Hastelloys C276 RTJ Flanges

Hastelloy C276 Raised Face Flange

Hastelloys C276 Raised Face Flanges

Hastelloy C276 Orifice Flange

Hastelloys C276 Orifice Flanges

Hastelloy C276 Spectacle Flange

Hastelloys C276 Spectacle Flanges
