Refer Duplex Steel Slip On Flanges Pressure Rating, Specification Of UNS S31803 Duplex Steel Pipe Flanges.


The secondary task of Duplex Steel Flanges is to provide ease to the worker accessing these systems to either clean, inspect or modifying them. Typically, the applications of Duplex Stainless Steel Flanges are seen in the following industries i.e. Chemical Plant, Chemical Tanker, Thermal power plant, Seawater desalination Plant, Seawater pump, flue gas desulfurization plants, architectural work as well as Pulp and paper plants. These industries make use of a piping system for the transference of media, which very frequently causes some kind of stress on regular flanges.

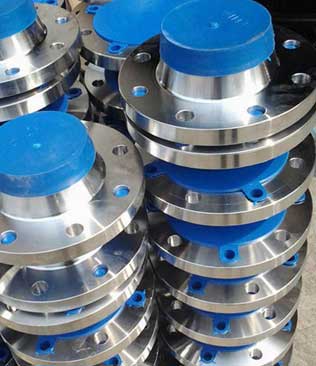

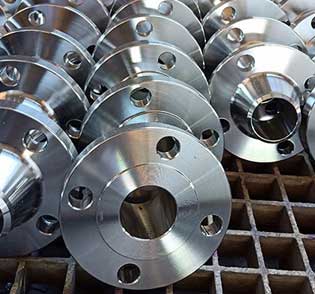

ASME B16.5 Duplex Steel Flanges
ASME B16.5 Duplex Steel Flanges
Duplex Steel Slip On Flanges
Duplex Steel Slip On Flanges

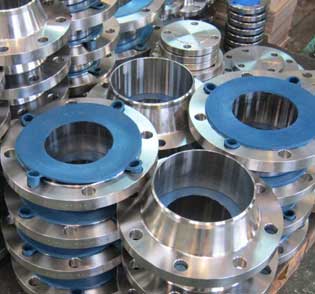

UNS S31803 Duplex Steel Pipe Flanges
UNS S31803 Duplex Steel Pipe Flanges


UNS S31803 Flanges Pressure Rating


ASME Duplex Steel Flanges Pressure Rating
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 275 720 960 1440 2160 3600 6000
200 230 600 800 1200 1800 3000 5000
300 205 540 720 1080 1620 2700 4500
400 190 495 660 995 1490 2485 4140
500 170 465 620 930 1395 2330 3880
600 140 435 580 875 1310 2185 3640
650 125 430 575 860 1290 2150 3580
700 110 425 565 850 1275 2125 3540
750 95 415 555 830 1245 2075 3460
800 80 405 540 805 1210 2015 3360
850 65 395 530 790 1190 1980 3300
900 50 390 520 780 1165 1945 3240
950 35 380 510 765 1145 1910 3180
1000 20 320 430 640 965 1605 2675
1050 20 310 410 615 925 1545 2570
1100 20 255 345 515 770 1285 2145
1150 20 200 265 400 595 995 1655
1200 20 155 205 310 465 770 1285
1250 20 115 150 225 340 565 945
1300 20 85 115 170 255 430 715
1350 20 60 80 125 185 310 515
1400 20 50 65 95 145 240 400
1450 15 35 45 70 105 170 285
1500 10 25 35 55 80 135 230

Duplex Steel Slip On Flanges Specification


Specification : Duplex Steel Flanges
Design For Size: ANSI, EN, ASA, ASME, DIN, JIS, BS, PN
Flange Machining Equipment: Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc
Connect Type: LJF, RF, FF, LMF, SMF, RTJ
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Production Process: Heat Treated, Machined, Forged
Coating Flanges Faces : Zinc Plated, Yellow Transparent, Anti-rust Paint, Cold and Hot Dip Galvanized, Oil Black Paint
Common Types of Flanges : Flanges 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Supporting Flanges Material: Gasket, Flanges Bolts, Ring Joint
Application: Water Pipeline Industry
Natural Gas Industry
Oil And Gas Industry
Nuclear Power Plant
Chemical Industry
Fabrication Industry
Standards: JIS Flanges, ISO Flanges, GOST Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, ASME B16.47 (Series A, Series B)
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS

Get Werkstoff No 1.4462 BLRF Flange At Low Prices, ISO approved Duplex Steel RTJ Flange Material Manufacturers In Mumbai, India, Check Duplex Stainless Steel Flanges Dimensions.


What Is Duplex Steel Flanges?


On the other hand, using UNS S31803 Duplex Steel Pipe Flanges ensures high performance, improved corrosion resistance and resultant longer service life. Due to the dual nature of the austenite and ferrite microstructure present in an equal proportion, the Duplex Steel RTJ Flange Material inherits properties from both steel classes. Which means, it gains superior ductility and corrosion resistance properties from the austenitic in the alloy and the Werkstoff No 1.4462 BLRF Flange has higher strength and hardness, both properties, which are a part of their ferrite presence. The high temperature strength of Duplex Steel Slip On Flanges is similar to alloy grade 430 in the temperature range between 950 to 1150℃. However, these flanges demonstrate a rapid increase in their tensile strength below 900℃.


Duplex Stainless Steel Flanges Dimension


CLASS NPS Duplex Steel SORF Flange Duplex Steel NPT Flange Duplex Steel SW Flange Duplex Steel Loose Flange Duplex Steel BLRF Flange Duplex Steel WN Flange
150# ½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
3 3 3 3 3 3
3 3 3 3 4 4
2 5 5 5 5 5 6
8 8 8 8 7 10
3 9 9 9 9 9 11.5
11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268
CLASS NPS SORF NPT Flanges SW Loose BLRF WN
300# ½ 2 2 3 2 2 2
¾ 3 3 3 3 3 3
1 3 3 3 3 4 4
4.5 4.5 4 4.5 6 5
6.5 6.5 6 6.5 7 7
2 7 7 7 7 8 9
10 10 10 10 12 12
3 13 14 13 14.5 16 18
17 17 17 17 21 20
4 23.5 24 22 24 28 26.5
5 29 31 28 28 37 36
6 39 39 39 39 50 45
8 58 58 58 58 81 69
10 81 81 81 91 124 100
12 115 115 115 140 185 142
14 165 165 165 190 250 206
16 210 220 190 234 315 250
18 253 280 250 305 414 320
20 315 325 315 375 515 400
22 370 370 370 435 640 465
24 490 490 475 550 800 580
CLASS NPS SORF NPT Flanges SW Loose BLRF WN
600# ½ 2 2 2 2 3 3
¾ 3 3 3 3 4 4
1 4 4 4 4 4 4
5 5 5 5 6 6
7 7 7 7 8 8
2 9 9 9 9 10 12
13 13 13 12 15 18
3 16 16 16 15 20 23
21 21 21 20 29 26
4 37 37 37 36 41 42
5 63 63 63 63 68 68
6 80 80 80 78 86 81
8 115 15 15 112 140 120
10 177 177 177 195 231 190
12 215 215 215 240 295 226
14 259 259 259 290 378 347
16 366 366 366 400 527 481
18 476 476 476 469 665 555
20 612 612 612 604 855 690
22 590 590 590 670 1000 720
24 876 876 876 866 1250 977

Check SS Duplex Steel Flanges Equivalent, S31803 Duplex WNRF Flanges Size Chart, S32205 Class 300 Duplex Steel Flange Mechanical Properties.


Duplex Steel RTJ Flange Equivalent


ASTM A182 F51/ ASTM A182 F60 1.4462 UNS S31803
ASTM A182 F53 1.4410 UNS S32750
ASTM A182 F55 1.4501 UNS S32760

S31803 Duplex WNRF Flanges Size Chart


Normal Pipe Size DN

4

100

3/4

20

3

80

2 1/2

65

2

50

1/2

15

1 1/4

32

1 1/2

40

1

25


SS Duplex Steel Flanges Mechanical Properties


Grades Density (g/cm 3) Density (lb/in 3) Melting Point (°C) Melting Point (°F)
S31803 / S32205 7.805 0.285 1420 – 1465 2588 – 2669

Suppliers Of ANSI B16.5 SA182M Duplex Steel Blind Flanges In India, Duplex Steel Weld Neck Flange Stockist, Duplex ASTM A182 2205 Plate Flange Chemical Composition.


Types Of Duplex Steel Pipe Flanges


Duplex Steel Orifice Flange

Duplex Steel Orifice Flanges

Duplex Steel Spectacle Flange

Duplex Steel Spectacle Flanges

Duplex Steel Slip On Flange

Duplex Steel Slip On Flanges

Duplex Steel Socket Weld Flange

Duplex Steel Socket Weld Flanges

Duplex Steel Reducing Flange

Duplex Steel Reducing Flanges

Duplex Steel Weld Neck Flange

Duplex Steel Weld Neck Flanges

Duplex Steel Blind Flange

Duplex Steel Blind Flanges

Duplex Steel Flat Face Flange

Duplex Steel Flat Face Flanges

Duplex Steel RTJ Flange

Duplex Steel RTJ Flanges

Duplex Steel Raised Face Flange

Duplex Steel Raised Face Flanges


Werkstoff No 1.4462 BLRF Flange Chemical Composition


Gr. C Mn Si P S Cr Mo Ni N Fe
S31803 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 22.0 – 23.0 3.0 – 3.5 4.50 – 6.50 0.14 – 0.20 63.72 min
S32205 0.030 max 2.00 max 1.00 max 0.030 max 0.020 max 21.0 – 23.0 2.50 - 3.50 4.50 – 6.50 0.8 – 0.20 63.54 min

Get ASME B16.5 Duplex Steel Grade F60 Orifice Flanges With Fast Delivery In India, Accept All Small/ Large Orders Of ASTM A182 Duplex Steel Threaded Flanges, View Duplex Steel Flanges Weight Chart.

ASTM A182 Duplex Steel Threaded Flanges Weight Chart


Standard Class Dia. Bolt Circle Dia. No. of Bolts Bolt Size Dia. of Bolt Hole
AS4087 Flange PN14 Flange 95 67 4 M12 14
AS 2129 Flange Table C Flange 95 67 4 13 14
Table D Flange 95 67 4 13 14
Table E Flange 95 67 4 13 14
Table F Flange 95 67 4 13 14
Table H Flange 114 83 4 16 17
Table J Flange 114 83 4 16 17
ANSI B16.5 Flange ANSI 150 Flange 89 60 4 13 16
ANSI 300 Flange 95 67 4 13 16
ANSI 600 Flange 95 67 4 13 16
ANSI 900 Flange 121 83 4 19 22
ANSI 1500 Flange 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 Flange 80 55 4 M10 11
PN10 Flange 95 65 4 M12 14
PN16 Flange 95 65 4 M12 14
PN20 Flange 90 60.5 4 M14 16
PN25 Flange 95 65 4 M12 14
PN40 Flange 95 65 4 M12 14
