Check DIN 2501 PN10 Plate Flange Dimensions, Specifications Of DIN 2501 PN10 Slip On Flange In India.


The number is indicative of the nominal pressure in bars. In the instance of DIN 2501 PN10 Flange, the Pressure Nominale or simply known as PN is 10 bar. Similar to most standards specifications like the ASTM or EN, the DIN standards have a set of parameters to be met by the manufacturer. In addition to the DIN 2501 PN10 Plate Flange Dimensions, these flanges are required to meet the pressure-temperature ratings, materials, marking, testing, tolerances, as well as the different methods that can be used to designate the openings for pipe flanges and flanged fittings.

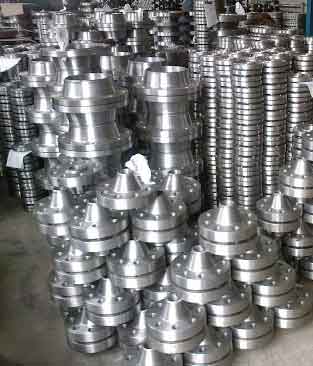

DIN 2501 PN10 Flange Standard
DIN 2501 PN10 Flange Standard
Flat Flange Din 2501 pn10 Material
Flat Flange Din 2501 pn10 Material
DIN 2501 PN10 Slip On Flange
DIN 2501 PN10 Slip On Flange


Looking for the Din 2501 Flange Material manufacturer in India? Buy from Metallect Steel - A leading Stainless Steel DIN 2501 pn10 flange Suppliers in Mumbai, Flat Flange Din 2501 pn10 Weight Chart.


What Is DIN 2501 PN10 Flange?


Although there are several different types of flanges, most buyers across different industries prefer using a DIN 2501 PN10 Slip On Flange over a weld neck type flange for its low cost. However, one has to note that the cost of the flange would depend on the alloy chosen by the buyer. For instance, a carbon steel slip on flange would cost much lower in comparison to a slip on type Stainless Steel DIN 2501 pn10 flange. The material used to build these flanges would be an alloy which has the ability to meet the demands of the application. Which is why alloys such as Monel, Nickel, Inconel, Incoloy, Hastalloy, Titanium, Stainless Steel, Carbon Steel, Duplex Steel as well as Alloy Steel are used as Din 2501 Flange Material during production. Flat Flange Dins 2501 pn10 is well suited to be used for applications involving low and pressure and temperature environments.


We provide Multiple Payment Options Of flanges norma din 2576 pn10, Fast delivery of Alloy Steel DIN 2576 pn10 flange, We supply high quality of Carbon Steel DIN 2576 flange in Mumbai, India.


Specifications Of DIN 2501 PN10 Plate Flange


Specification : DIN 2501 PN10 Flange
Coating Flanges Faces : Cold and Hot Dip Galvanized, Yellow Transparent, Zinc Plated, Oil Black Paint, Anti-rust Paint
Design For Size: BS, DIN, ANSI, ASME, EN, ASA, JIS
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Standard : BS10 Flange, DIN Flange, ASME B16.47 (Series A, Series B) Flange, UNI Flange, ASME B16.38 Flange, ISO Flange, JIS Flange, MSS SP44 Flange, EN-1092 Flange, ASME B16.5 Flange, AWWA Flange, GOST Flange
Machining Equipment: Press machine, Pushing Machine, Electric bevelling machine, Bending machine, Sand-blasting machine etc
Application: Chemical Industry
Water Pipeline Industry
Natural Gas Industry
Fabrication Industry
Nuclear Power Plant
Oil And Gas Industry
Supporting Flanges Material: Ring Joint, Flanges Bolts, Gasket
Connect Type Type: LMF, RF, LJF, FF, RTJ, SMF
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flanges Dimensions: Class 150 RTJ
Flanges 300 LB WNRF
Class 900 SORF
1500# BLRF
Class 2500 BLRF
Production Process: Forged, Heat Treated and Machined

DIN 2576 PN 10 Form B Flange stockist in Mumbai, Check DIN 2576 PN 10 DN 300 Flange Weight Chart, Get Free Quote of DIN 2501 PN10 Blind Flange, DIN 2501 10 Flange manufacturers in India.

Types Of DIN 2501 PN10 Standard Flanges


DIN 2501 PN10 Plate Flange

DIN 2501 PN10 Plate Flange

DIN 2501 PN10 Slip On Flange

DIN 2501 PN10 Slip On Flange

Din 2501 Flange Material

Din 2501 Flange Material

Flat Flange Din 2501 pn10

Flat Flange Din 2501 pn10

Flanges Norma DIN 2576 PN10

Flanges Norma DIN 2576 PN10

DIN 2576 PN 10 Form B Flange

DIN 2576 PN 10 Form B Flange

DIN 2576 PN 10 DN 300 Flange

DIN 2576 PN 10 DN 300 Flange

DIN 2501 PN10 Blind Flange

DIN 2501 PN10 Blind Flange


Best deals on bulk procurement of DIN 2576 PN 10 DN 700 Plate Flange for piping connection, We provide DIN 2576 pn10 slip on flange In-House Cutting, Check din 2576 flange standard And 2501 PN10 Flange Dimensions.

Flanges DIN 2576 PN 10 Dimensions


Flanges DIN 2576 PN 10 Dimensions

NPS Diam. of Flanges Diameter Flanges I.D Thickness of Flanges Diameter of Bolt Cirlce Number of Diameter of Bolt Holes Weight
PLATE BLIND
DN Pipe D D5 B K holes D2 KG KG
15 21.30 95 22.00 14 65 4 14 0.67 0.71
20 26.90 105 27.60 16 75 4 14 0.93 1.01
25 33.70 115 34.40 16 85 4 14 1.11 1.23
32 42.40 140 43.10 16 100 4 18 1.62 1.81
40 48.30 150 49.00 16 110 4 18 1.85 2.09
50 60.30 165 61.10 18 125 4 18 2.46 2.88
65 76.10 185 77.10 18 145 4 18 2.99 3.65
80 88.90 200 90.30 20 160 8 18 3.61 4.61
100 114.30 220 115.90 20 180 8 18 3.99 5.65
125 139.70 250 141.60 22 210 8 18 5.41 8.13
150 168.30 285 170.50 22 240 8 22 6.55 10.44
175 193.70 315 196.10 24 270 8 22 8.42
200 219.10 340 221.80 24 295 12 22 8.97 16.48
250 273.00 405 276.20 26 355 12 26 12.76 23.99
300 323.90 460 327.60 28 410 12 26 16.60 30.73
350 355.60 520 359.70 30 470 16 26 24.08 42.56
400 406.40 580 411.00 32 525 16 30 30.20 60.68
450 457.00 640 462.30 38 585 20 30 41.67 71.74
500 508.00 715 513.60 38 650 20 33 52.87 96.4
600 610.00 840 616.50 42 770 20 36 77.58 145.6
700 711.00 910 716.00 44 840 24 36 77.13
800 813.00 1025 818.00 50 950 24 39 106.35
900 914.00 1125 920.00 54 1050 28 39 125.39
1000 1016.00 1255 1022.00 60 1170 28 42 177.99

Flat Flange Din 2501 pn10 Pressure Rating


Temperature (in F°) Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
< 100 285 740 985 1480 2220 3705 6170
200 260 680 905 1360 2035 3395 5655
300 230 655 870 1310 1965 3270 5450
400 200 635 845 1265 1900 3170 5280
500 170 605 805 1205 1810 3015 5025
600 140 570 755 1135 1705 2840 4730
650 125 550 730 1100 1650 2745 4575
700 110 530 710 1060 1590 2655 4425
750 95 505 675 1015 1520 2535 4230
800 80 410 550 825 1235 2055 3430
850 65 320 425 640 955 1595 2655
900 50 230 305 460 690 1150 1915
950 35 135 185 275 410 685 1145
1000 20 85 115 170 255 430 715
Hydrostatic Test (psig) 450 1125 1500 2225 3350 5575 9275

Carbon Steel DIN 2576 pn10 flange Size Chart


NPS
NPS
(inch)
Diammeter of
Flanges
(inch)
No.
of
Bolts
Diammeter of
Bolts
(inch)
Diammeter of
Bolt Holes
(inch)
Bolt
Circle
(inch)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2
