Check 1/4 inch Copper Plumbing Fittings Pressure Rating, 22mm Copper Pipe End Fittings Chemical Composition.


Apart from its inherently good looking colour, the Copper Fittings are used almost exclusively for plumbing applications due to its superior corrosion resistance properties, good machinability in addition to a high level of heat transfer.

As water infrastructure is used across any area ages, there are changes noted in the quality of water, changes in water treatment practices as well as in water infrastructure maintenance. These changes pose increasingly difficult challenges on municipalities, water suppliers, and residents. Copper is the only material that is well suited to be used for service line piping systems. The material used to make Copper Plumbing Fittings has a proven history of reliability, safety, longevity, and life-cycle cost effectiveness. These are properties present in the Copper Pipe Fittings are required to meet the challenges required in these infrastructure decisions.

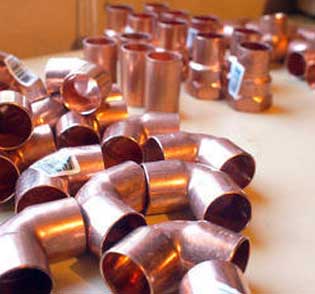

ASME B16.9 Copper Fittings
ASME B16.9 Copper Fittings
Copper Plumbing Fittings
Copper Plumbing Fittings
Copper Pipe End Fittings
Copper Pipe End Fittings


ASME B16.9 Copper Plumbing Fittings Pressure Rating Pressure Rating


Pressure Rating (psig)
NPS
(inch)
Pipe Sch. OD
(inch)
Wall
Thick.
(in)
Temperature (oF)
Copper 100 Fittings Copper 200 Fittings Copper 300 Fittings Copper 400 Fittings Copper 500 Fittings Copper 600 Fittings
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850

What Is Copper Fittings?


Along with being used in plumbing systems, the Buttweld Copper Pipe End Fittings is used in the chemical, oil, process based and marine industries. A compression fitting is a component that could be used in plumbing or in electrical conduit systems in order to join two tubes or two thin walled pipes together. A benefit of using these Copper Compression Fittings is that they permit ease in both disconnection and reconnection of the piping system.

Grooved pipe fitting are typically used to forge connections in both wet and dry piping systems. Referred to mostly as Victaulic style pipe fitting, the Forged Copper Grooved Fittings offer some form of flexibility in terms of movement as well as some deflection to the piping system.


Copper Pipe End Fittings Chemical Composition


Standard Copper NO. Chemical Composition Mechanical Properties
CU% P% Temper Tensile strength (Mpa) Elongation (%) Average Grain Size (mm)
ASTM
B280/68
C12200 >99.9 0.015 to 0.040 >60 >205 >40 >0.040
>50 >245

Biggest Copper Fittings Manufacturers In India, Threaded Copper Pipe Fittings Specifications, Compare Prices Before You Buy Copper Pipe Compression Fittings.


Threaded Copper Pipe Fittings Specifications


Standard Specification : Copper Fittings
Standard: JIS B2313 Fittings, ANSI B16.9 Fittings, ANSI B16.28 Fittings, MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Chemical Industry
Water Pipeline Industry
Nuclear Power Plant
Natural Gas Industry
Fabrication Industry
Oil And Gas Industry
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Coating Fitting Faces : Oil Black Paint, Zinc Plated, Cold and Hot Dip Galvanized, Yellow Transparent, Anti-rust Paint
Fitting Machining Equipment: Electric bevelling machine, Press machine, Bending machine, Pushing Machine, Sand-blasting machine etc

Industrial Copper Pipe Fittings Dimensions In Inch, Largest Supplier Of Copper Elbow Fittings, We provide Brass Copper Fitting Male Adapter 3rd Party Testing.


Industrial Copper Pipe Fittings Dimensions


Industrial Copper Pipe Fittings Dimensions

Types Of Copper Pipe Fittings


Copper Tee

Copper Tee

Copper End Cap

Copper End Cap

Copper Elbow

Copper Elbow

Copper Reducer

Copper Reducer

Copper Threaded Plug

Copper Threaded Plug

Copper Stub End

Copper Stub End

Copper Socket Weld Union

Copper Socket Weld Union

Copper Cross

Copper Cross

Copper Lateral Tee

Copper Lateral Tee

Copper U Bend

Copper U Bend


Refer Ferrule Copper Pipe Fittings Size Chart, Buy Grooved Copper Pipe Fitting Certified & Tested, Male Copper Reducing Tee Delivering Everywhere In India.

Copper Pipe Reducer Size Chart


Copper Pipe Reducer Size Chart

Equivalent Length of Copper Pipe Fitting, Manufacting High-Class Copper Pipe Cap In India, Stockist Of Copper Pipe Reducer In India.

Equivalent Length of Copper Pipe Fittings


BS EN NUMBER TITLE NEAREST OLD BS EQUIVALENT
Copper Fitting
12420 Pt 1-5 Plumbing fitting 864
prEN1254 Pt 6-7 Plumbing fitting -
12420 Forgings 2872
prEN14905 Recommended practice for the installation of plumbing fitting -
