ASME B16.9 Brass Fittings Manufacturers In India, 15mm x 15mm Brass Compression Fittings Specifications.


Brass, which is an alloy of zinc and copper is one of the most commonly used metal for making pipe fitting for different systems. Due to a combination of its unique properties, Brass Fittings make an ideal choice for a variety of uses.

Plumbing Brass Fittings are frequently chosen by plumbers as well as other construction professionals on account of its dynamic properties. For instance, these fitting tend to be more durable in comparison to other material options in addition to its resistance to corrosion. Since the alloy is flexible, different types of fitting can be produced by brass.


ASME B16.9 Brass Fittings
ASME B16.9 Brass Fittings
Brass Compression Fittings
Brass Compression Fittings

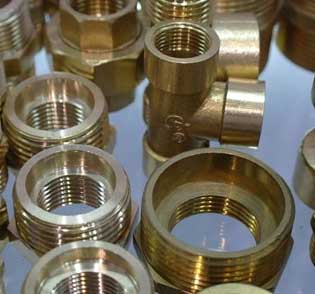

Forged Brass Threaded Fittings
Forged Brass Threaded Fittings


Brass Compression Fittings Specifications


Standard Specification : Brass Fittings
Coating Fitting Faces : Cold and Hot Dip Galvanized, Yellow Transparent, Oil Black Paint, Zinc Plated, Anti-rust Paint
Standard: MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Nuclear Power Plant
Natural Gas Industry
Fabrication Industry
Chemical Industry
Water Pipeline Industry
Oil And Gas Industry
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.

Refer 1/2 x 1/2 Brass Pipe Fittings Dimensions In Millimeter And AS3688 Forged Brass Threaded Fitting Weight Chart, Brass Furniture Fitting Pressure Rating.


Brass Pipe Fittings Dimensions


Brass Pipe Fittings Dimensions

Brass Pipe Fittings Dimensions

What Is Brass Fittings?


Typically, buyers prefer using Industrial Brass Fittings as attachments to piping systems in the conveyance of different media such as chemicals, water, flammable gases, along with slurries, and other plumbing substances. Brass Compression Fittings are made available across a wide range of shapes and thread sizes in order to connect, adapt, or to control the flow of any liquid or gas in pipes.

Apart from plumbing, Buttweld Brass Pipe Fitting could also be used for some automotive applications, such as those seen in hose ends, air brakes, and fuel line valves. Moreover, these Forged Brass Threaded Fitting may also be found in refrigerator cooler fitting, ballcock adapters, and compression fitting.


Brass Furniture Fittings Pressure Rating


Pressure Rating (psig)
NPS
(inch)
Pipe Sch. OD
(inch)
Wall
Thick.
(in)
Temperature (oF)
100 200 300 400 500 600
Allowable Stress (Pressure Rating)
16700 16700 16700 15500 14400 13500
1" 40 1.315 0.133 2205 2205 2205 2047 1902 1783
80 1.315 0.179 3061 3061 3061 2841 2640 2475
160 1.315 0.250 4493 4493 4493 4170 3874 3632
1 1/2" 40 1.900 0.145 1629 1629 1629 1512 1404 1317
80 1.900 0.200 2303 2303 2303 2138 1986 1862
160 1.900 0.281 3362 3362 3362 3120 2899 2717
2" 40 2.375 0.154 1371 1371 1371 1272 1182 1108
80 2.375 0.218 1985 1985 1985 1843 1712 1605
160 2.375 0.344 3283 3283 3283 3047 2831 2654
3" 40 3.500 0.216 1301 1301 1301 1208 1122 1052
80 3.500 0.300 1844 1844 1844 1712 1590 1491
160 3.500 0.438 2787 2787 2787 2587 2403 2253
4" 40 4.500 0.237 1102 1102 1102 1023 950 891
80 4.500 0.337 1596 1596 1596 1482 1377 1291
160 4.500 0.531 2611 2611 2611 2424 2552 2111
5" 40 5.563 0.258 965 965 965 896 832 780
80 5.563 0.375 1428 1428 1428 1325 1231 1154
160 5.563 0.625 2474 2474 2474 2296 2133 2000
6" 40 6.625 0.280 877 877 877 814 756 709
80 6.625 0.432 1379 1379 1379 1280 1189 1115
160 6.625 0.719 2382 2382 2382 2211 2054 1925
8" 40 8.625 0.322 771 771 771 716 665 623
80 8.625 0.500 1218 1218 1218 1131 1050 985
160 8.625 0.906 2298 2298 2298 2133 1982 1858
10" 40 10.750 0.365 699 699 699 649 603 565
80 10.750 0.594 1159 1159 1159 1075 999 937
160 10.750 1.125 2289 2289 2289 2124 1974 1850

Forged Brass Threaded Fittings Weight Chart


Forged Brass Threaded Fittings Weight Chart

Get a Live Quote Now For Brass Sanitary Fittings, Suppliers of Brass Plumbing Fittings, Contact US Today For Buy Industrial Brass Fitting With Low Price In India.


Types Of Brass Plumbing Fitting


Brass Elbow

Brass Elbow

Brass Tee

Brass Tee

Brass Reducer

Brass Reducer

Brass End Cap

Brass End Cap

Brass Stub End

Brass Stub End

Brass Threaded Plug

Brass Threaded Plug

Brass Socket Weld Union

Brass Socket Weld Union

Brass Cross

Brass Cross

Brass U Bend

Brass U Bend

Brass Lateral Tee

Brass Lateral Tee


Check Swagelok Brass Fitting Chemical Composition, We provide Custom Brass Fitting Expert Cutting Service In Mumbai, Avilable Type Of NPT Brass Fitting.

Swagelok Brass Fittings Chemical Composition


Brass Cu Fe Pb Zn
Min./Max. 60.0-63.0 0.35 2.5-3.0 Rem.
Nominal 61.5 2.7 35.4

ISO Approved Manufacturers Of Brass Fitting, View Natural Gas Brass Fitting Physical Properties, Fast Delivery On MSS SP-75 Small Brass Fitting In India.

Natural Gas Brass Fittings Physical Properties


Properties US Customary
Electrical Conductivity 26 %IACS @ 68 F
Thermal Conductivity 67 Btu · ft/(hr · ft2·oF)at 68F
Modulas of Elasticity in Tension 14000 ksi
Melting Point -Liquidus 1650 F
Melting Point -Solidus 1630 F
Density 0.307 lb/in3at 68 F
Electrical Resistivity 39.90 ohms – cmil/ft @ 68 F
