Check Carbon Steel Gr A860 WPHY 65 Elbow Specification And Buttweld A860 WPHY 65 Reducer Weight Chart.


Both specifications i.e. ASTM A860, as well as MSS SP 75, are standards for factory produced butt welded fittings. These ASTM A860 WPHY 65 Fittings are particularly well suited to be used in the transmission of various media like steam, gas, water and oil across refineries to off and onshore sites. Regularly associated as a part of high pressure category fittings, the Carbon Steel Gr A860 WPHY 65 Elbow could be used to change the direction of the flow of different media, generally at an angle of either 22.5 degrees, 45 degrees or 90 degrees. Unless the elbow was custom made to another angle in order to meet the requirements of the application. Typically, the material used in the construction of ASTM A865 MSS SP 75 WPHY 65 Pipe Fittings could be low alloyed steel with the type of construction being either seamless or welded. The term WPHY was shortened from Wrought plate or pipe high yield fittings. Therefore the minimum yield strength of a CS ASTM A860 WPHY 65 Stub End would be about 65000 PSI.

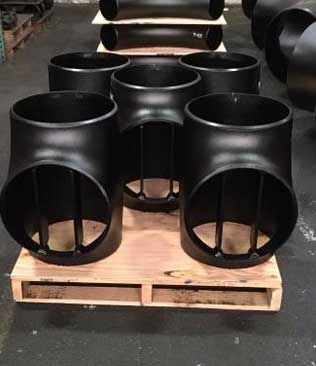

ASTM A860 WPHY 65 Fittings

ASTM A860 WPHY 65 Fittings

Carbon Steel Gr A860 WPHY 65 Elbow

Carbon Steel Gr A860 WPHY 65 Elbow

Buttweld A860 WPHY 65 Reducer

Buttweld A860 WPHY 65 Reducer



Manufacturer Of CS A860 Grade WPHY 65 Pipe Cap In Mumbai, India, Check the market price before you Buy ASTM A865 MSS SP 75 WPHY 65 Pipe Fittings, CS ASTM A860 WPHY 65 Stub End Grade Equivalent.


What Is ASTM A860 WPHY 65 Fittings?


Pipe fittings like the Buttweld A860 WPHY 65 Reducer that have been manufactured in accordance with either specification i.e. MSS SP 75 or ASTM A860 need to be furnished in the heat treated condition. Fittings that have been hot formed are mandated to be cooled below the lower critical temperature before being given heat treatment. Fittings like the CS A860 Grade WPHY 65 Pipe Cap are usually heat treated by one or more of the following procedures i.e. annealing or stress relieving, normalizing, normalizing and tempering as well as quenching and tempering.


WPHY 65 Welded Pipe Fittings Specification


Standard Specification : ASTM A860 WPHY 65 Fittings
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Standard: ANSI B16.28 Fittings, JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type A Fittings, JIS B2312 Fittings, MSS-SP-43 Type B Fittings
Fitting Machining Equipment: Electric bevelling machine, Sand-blasting machine, Press machine, Bending machine, Pushing Machine etc
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Thickness: View Our Thickness: Sch5S, Sch10, Sch20, Sch10, Sch20, Sch30, SchTD, Sch40, Sch60, XS, Sch80, Sch100, Sch120, Sch140, Sch160.
Coating Fitting Faces : Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated, Oil Black Paint, Yellow Transparent
Application: Water Pipeline Industry
Natural Gas Industry
Oil And Gas Industry
Fabrication Industry
Nuclear Power Plant
Chemical Industry

Carbon Steel Buttweld A860 Grade WPHY 65 Pipe Cap Weight Chart


Carbon Steel Buttweld A860 Grade WPHY 65 Pipe Cap Weight Chart

View our Carbon ASTM A860 Gr WPHY 65 U Bend inventory in Mumbai, A860 WPHY 65 Material Chemical Composition And WPHY 65 Welded Pipe Fittings Mechanical Properties.


A860 WPHY 65 Elbow Chemical Composition


Grade C Mn S P Si Ni Cr Mo Cu Ti V Cb Al
ASTM A860 WPHY 65 0.20 1.00-1.45 0.03 0.01 0.15-0.40 0.50 0.30 0.25 0.35 0.05 0.10 0.06

A860 WPHY 65 Reducer Mechanical Properties


Element Elongation Tensile Strength Yield Strength (0.2%Offset)
a860 WPHY 65 28 % 515-690 415

Contact us today for buy Carbon A860 Gr WPHY 65 Lateral Tee In India, Get Free Quote Carbon Steel X65 Tee, Suppliers Of ASTM A860 WPHY 65 Fittings.

ASTM A860 MSS SP 75 WPHY 65 Fittings Type


A860 Carbon Steel WPHY-65 Equal Tee

A860 Carbon Steel-65 Equal Tee

A860 Gr WPHY 65 180 Deg Elbow

A860 Gr WPHY 65 180 Deg Elbow

WPHY 65 BW Cross Fitting

A860 Gr 65 BW Cross Fitting

MSS SP 75 WPHY 65 Material

MSS SP 75 WPHY 65 Material

Carbon Steel A860 WPHY 65 Weld Lateral Tee

Carbon Steel A860 65 Weld Lateral Tee

High Yield Carbon Steel A860 WPHY 65 End Cap

High Yield Carbon Steel A860 65 End Cap

ASTM A860 Carbon Steel WPHY 65 Reducing Tee

ASTM A860 Carbon Steel WPHY 65 Reducing Tee

ASTM A860 High Yield Gr WPHY 65 Stub Ends

ASTM A860 High Yield Gr 65 Stub Ends

Buttweld WPHY-65 Concentric Reducer

Buttweld WPHY-65 Concentric Reducer

MSS SP 75 WPHY 65 Eccentric Reducer

MSS SP 75 WPHY 65 Eccentric Reducer

ASTM A860 Gr WPHY 65 45 Degree Elbow

ASTM A860 Gr 65 45 Degree Elbow

Carbon Steel MSS SP75 WPHY 65 90 Deg Elbow

Carbon Steel MSS SP75 65 90 Deg Elbow


Refer ASTM A860 Gr WPHY 65 Fittings Pressure Rating And ASTM A860 Grade WPHY 65 Seamless Pipe Fitting Weight Chart, We provide MSS SP-75 Gr 65 Buttweld Fittings In-House Cutting.

ASTM A865 MSS SP 75 WPHY 65 Pipe Fittings Pressure Rating


ASTM A865 MSS SP 75 WPHY 65 Pipe Fittings Pressure Rating


ASTM A860 WPHY Reducer

ASTM A860 WPHY 65 Reducer

3.ASTM A860 MSS SP 75 65 Reducer

WT: sch40/ std/ sch80/ thick-wall

Carbon Steel Grade WPHY 65 Pipe Concentric

A860 WPHY 65 Eccentric Reducer

MSS SP 75 A860 WPHY 65 Con/ Ecc Reducer


ASTM A860 WPHY Cap

A860 Gr WPHY 65 CAP

4. Buttweld-WPHY 65 SMLS CAP

MSS SP 75 WPHY 65 cap

Cap Pipe fittings

  • Carbon Steel MSS SP75 WPHY 65 Cap Wall thickness : Sch5~Sch160\ XXS
  • CS A860 WPHY 65 Weld Cap Fittings Material : A600 Gr WPL6/ WPL3
  • High Yield Carbon Steel A860 WPHY 65 End Pipe Cap Standard : ANSI, ASTM, ASME, JIS, BS, MSS, DIN etc.
  • ASTM A860 Carbon Steel WPHY 65 Cap Size : 1/2’’~48’’(SMLS);16’’~72’’(Welded)

ASTM A860 WPHY Cap Stubend

ASTM A860 High Yield Gr WPHY 65 Stubend

5. A860 Carbon Steel-WPHY 65 Stubend

A860 Gr WPHY 65 60 Stubend
these Material ASTM A860 Buttweld are known for accurate dimension, corrosion resistance and durability.
A860 Gr WPHY 65 Short Stubend
A860 Gr WPHY 65 BW Long Stubend


Elbow WPHY 65

Elbow WPHY 65

ASTM A860 API 5L X65 elbow manufacturer

  • ASTM A860 WPHY 65 elbow size : Seamless:1/2"-30"
  • Buttweld-WPHY 65 Fittings standard : ASME B16.9, MSS SP-75
  • MSS SP 75 WPHY 65 elbow thick. : Sch 10S, SCH 20, SCH 30, SCH 40
  • ASTM A860 Gr WPHY 65 elbow deg : 22.5 degree, 30 degree,45 degree, 90 degree, 180 degree, 1.0D, 1.5D
