Check Carbon Steel A860 gr WPHY 52 Elbow Chemical Composition And Buttweld WPHY 52 Reducer Mechanical Properties.


The full form of WPHY is Wrought Pipe or Plate High yield, which mentions a grade in the form of a number. The number is indicative of its minimum yield strength in 1000’s psi. For the said ASTM A860 WPHY 52 Fittings, the minimum yield strength is about 52000 PSI. The high strength material is a low alloy steel grade, designed to withstand high stress situations like those seen during the transmission of media across in the oil and gas industry. CS Gr A860 WPHY 52 Seamless Butt Weld Fittings have to be heat treated in order to achieve optimum tensile strength properties. The high strength obtained by these seamless or welded Carbon Steel WPHY 52 pipe Fittings could be increased by subjecting the material through processes such as normalizing, quenching, and tempering or stress relieving.

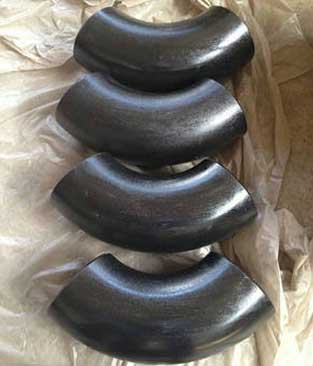

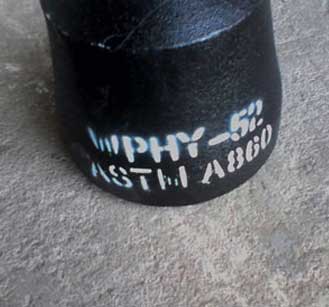

ASTM A860 WPHY 52 Fittings

ASTM A860 WPHY 52 Fittings

Carbon Steel A860 Gr WPHY 52 Elbow

Carbon Steel A860 Gr WPHY 52 Elbow

ASME B16.11 Buttweld WPHY 52 Reducer

ASME B16.11 Buttweld WPHY 52 Reducer



A860 WPHY 52 Chemical Composition


Fittings Grade C Mn S P Si Ni Cr Mo Cu Ti V Cb
A860 WPHY 52 Fitting 0.20 1.00-1.45 0.03 0.01 0.15-0.40 0.50 0.30 0.25 0.35 0.05 0.10 0.06

MSS-SP75 WPHY 52 Mechanical Properties


Fittings Element Tensile Strength Elongation Yield Strength (0.2%Offset)
WPHY 52 515-690 28 % 66

Manufacturer Of MSS-SP75 WPHY 52 Stub End In India, WPHY 52 Equivalent Properties, Carbon Steel WPHY 52 pipe Fittings Specification.


What Is ASTM A860 WPHY 52 Fittings?


Along with conforming to the testing methods, chemistry and mechanical properties, the MSS-SP75 WPHY 52 Stub End is a fitting that conforms to the tolerances, dimensions, sizes as well. Properties such as the yield strength and tensile strength, notch toughness, elongation, in addition to the hardness of the Carbon Steel A860 gr WPHY 52 Elbow are required to conform to the specification. Although a hydrostatic test is not required to be administered to the Buttweld WPHY 52 Reducer.


Carbon Steel A860 Gr WPHY 52 Elbow Specification


Standard Specification : ASTM A860 WPHY 52 Fittings
Coating Fitting Faces : Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated, Oil Black Paint, Yellow Transparent
Fitting Machining Equipment: Electric bevelling machine, Sand-blasting machine, Press machine, Bending machine, Pushing Machine etc
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Thickness: View Our Thickness: Schedule 5S, Schedule 10, Schedule 20, Schedule 10, Schedule 20, Schedule 30, Schedule TD, Schedule 40, Schedule 60, XS, Schedule 80, Schedule 100, Schedule 120, Schedule 140, Schedule 160.
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Standard: JIS B2313 Fittings, ANSI B16.9 Fittings, MSS-SP-43 Type b Fittings, MSS-SP-43 Type A Fittings, JIS B2312 Fittings, ANSI B16.28 Fittings, MSS-SP-43 Type B Fittings
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Application: Chemical Industry
Nuclear Power Plant
Natural Gas Industry
Fabrication Industry
Oil And Gas Industry
Water Pipeline Industry

Refer Carbon A860 Grade WPHY 52 Elbow Pressure Ratings, CS Gr A860 WPHY 52 Seamless Butt Weld Fittings Suppliers In Mumbai, India, Stockist of High Yield ASTM A860 WPHY 52 Buttweld Elbow.


Types Of Carbon Steel WPHY 52 pipe Fittings


Carbon Steel A860 WPHY 52 Weld Lateral Tee

Carbon Steel A860 WPHY 52 Weld Lateral Tee

High Yield Carbon Steel A860 WPHY 52 End Cap

High Yield Carbon Steel A860 52 End Cap

ASTM A860 Carbon Steel WPHY 52 Reducing Tee

ASTM A860 Carbon Steel WPHY 52 Reducing Tee

ASTM A860 High Yield Gr WPHY 52 Stub Ends

ASTM A860 High Yield Gr WPHY 52 Stub Ends

Buttweld WPHY-52 Concentric Reducer

Buttweld-52 Concentric Reducer

MSS SP 75 WPHY 52 Eccentric Reducer

MSS SP 75 WPHY 52 Eccentric Reducer

ASTM A860 Gr WPHY 52 45 Degree Elbow

ASTM A860 Gr 52 45 Degree Elbow

Carbon Steel MSS SP75 WPHY 52 90 Deg Elbow

Carbon Steel MSS SP75 52 90 Deg Elbow

A860 Carbon Steel WPHY-52 Equal Tee

A860 Carbon Steel WPHY-52 Equal Tee

A860 Gr WPHY 52 180 Deg Elbow

A860 Gr 52 180 Deg Elbow

WPHY 52 BW Cross Fitting

WPHY 52 BW Cross Fitting

MSS SP 75 WPHY 52 Material

MSS SP 75 WPHY 52 Material


Buy Carbon Steel X52 Pipe Nipple Certified & Tested Materials, We provide Multiple Payment Options Of Carbon Steel Grade 52 Cross, Great deals for bulk A 860 WPHY 52 Welded Pipe Fittings for piping connection.

ASTM A860 Gr WPHY 52 Material Pressure


ASTM A860 Gr WPHY 52 Material Pressure

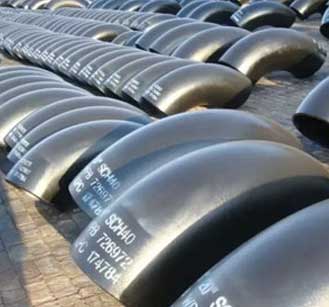

Elbow WPHY 52

Elbow WPHY 52

ASTM A860 API 5L X52 elbow manufacturer

  • ASTM A860 WPHY 52 elbow size : Seamless:1/2"-30"
  • Buttweld WPHY-52 Fittings standard : ASME B16.9, MSS SP-75
  • MSS SP 75 52 elbow thick. : Sch 10S, SCH 20, SCH 30, SCH 40
  • ASTM A860 Gr WPHY 52 elbow deg : 22.5 degree, 30 degree,45 degree, 90 degree, 180 degree, 1.0D, 1.5D

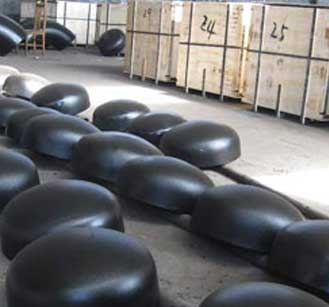

ASTM A860 WPHY Cap

A860 Gr WPHY 52 CAP

4. Buttweld WPHY-52 SMLS CAP

MSS SP 75 52 cap

Cap Pipe fittings

  • Carbon Steel MSS SP75 WPHY 52 Cap Wall thickness : Sch5~Sch160\ XXS
  • CS A860 WPHY 52 Weld Cap Fittings Material : AWPHY 520 Gr WPL6/ WPL3
  • High Yield Carbon Steel A860 WPHY 52 End Pipe Cap Standard : ANSI, ASTM, ASME, JIS, BS, MSS, DIN etc.
  • ASTM A860 Carbon Steel WPHY 52 Cap Size : 1/2’’~48’’(SMLS);16’’~72’’(Welded)

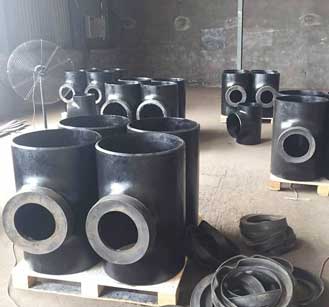

ASTM A860 WPHY Tee

ASTM A234 WPHY 52 Tee

2. Carbon Steel MSS SP75 52 Tee

Carbon Steel A860 WPHY 52 Weld Reducing Tee

High Yield Carbon Steel A860 WPHY 52 Tee

  • ASTM A860 Carbon Steel WPHY 52 Tee Material : A234-WP11. A234-WP5, A234-WPB.A860-WPL6.A234-WP12.
  • ASTM A860 High Yield Gr WPHY 52 Packaging : wooden pallet or Wooden Cases as per Client Requirement
  • A860 Carbon Steel-WPHY 52 Tee Applications Range : Gas, power, shipbuilding, construction, metallurgy, Petroleum, chemical etc
  • WPHY 52 Tee Size : 1/2"-72"DN15-DN1800
  • A860 Gr WPHY 52 Tee Dimension Tolerance : ±12.5%
  • WPHY 52 BW Standard: ISO. ANSI. JIS. DIN GB/T13401/T12459GB ASME B16.9

ASTM A860 WPHY Reducer

ASTM A860 WPHY 52 Reducer

3.ASTM A860 MSS SP 75 52 Reducer

WT: sch40/ std/ sch80/ thick-wall

Carbon Steel Grade WPHY 52 Pipe Concentric

A860 WPHY 52 Eccentric Reducer

MSS SP 75 A860 WPHY 52 Con/ Ecc Reducer


ASTM A860 WPHY Cap Stubend

ASTM A860 High Yield Gr WPHY 52 Stubend

5. A860 Carbon Steel-WPHY 52 Stubend

A860 WPHY 52 Stubend
these Material ASTM A520 WPL6 Buttweld are known for accurate dimension, corrosion resistance and durability.
A860 Gr WPHY 52 Short Stubend
A860 WPHY 52 BW Long Stubend


View MSS SP-75 Gr WPHY 52 Tee Weight Chart, ASTM A860 WPHY 52 Fittings Manufacturers In India, Get ASTM A860 gr 52 End Pipe Cap With Best Price & ASTM A860 Gr WPHY 52 Material Fast Delivery.

Buttweld Grade WPHY 52 Fittings Weight Chart


Buttweld Grade WPHY 52 Fittings Weight Chart
