Reliable ASTM A694 Gr F60 Forged Fittings Manufacturer In India, We Are Supplying A694 F65 Material To More Than 30 Locations Worldwide.


The ASTM A694 F65 Flanges is required to undergo a chemical heat analysis while conforming to the chemistry, mechanical property requirements as well as the testing requirements. The grade F65 is what designates the minimum yield strength in KSI at 0.2% offset. Hence, the minimum yield strength at 0.2% offset for the SA 694 Gr F65 Elbow is 65 KSI. Industries like the oil and gas prefer using the inexpensive yet, strong carbon steel in its piping systems. Carbon Steel A694 F65 Material has the ability to withstand high stresses that occur during the transmission service, thus making them an ideal alloy for several industries. ASTM A694 Gr F60 Forged Fittings also have superior mechanical and metallurgical properties including good fatigue and impact resistance.


ASTM A694 F65 Flanges

ASTM A694 F65 Flanges

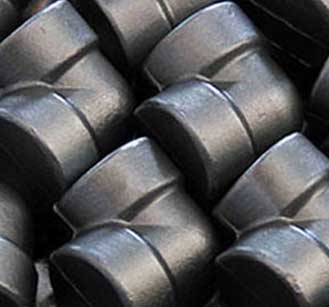

A694 Gr F60 Forged Fittings

A694 Gr F60 Forged Fittings

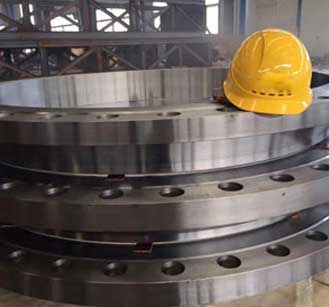

SAA694 F65 Material

SAA694 F65 Material



Check ASTM A694 F60 Fittings Material Specification, SA 694 Gr F65 Elbow Equivalent Material, A694 Gr F65 SORF Flange Yield Strength.


What Is ASTM A694 F65 Flanges?


An ASTM A694 Gr F65 SORF Flange is connected to the pipe or the fittings with the use of two fillet welds. One fillet weld has been executed inside, whereas the one is executed outside the cavity of the flange. Often referred to as a Hubbed Flange, the bore size of an ASME B16.5 A694 Gr F65 SORF Flanges tends to be larger than the outside diameter of the connecting pipe. since the pipe has to slide inside the flange in order to be connected by the execution of a fillet welds inside and outside the flange. Slip-on flanges are usually are easy to recognize due to their slim and compact shape.


Specification Of A694 F65 Material


Specification : ASTM A694 F65 Flanges
Design For Size: DIN, JIS, ANSI, BS, PN, EN, ASA, ASME
Forged Type : NPT (Threaded), BSPT, BSPP.
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Standards: DIN Flanges, PN Flanges, JIS Flanges, ISO Flanges, UNI Flanges, AWWA Flanges, ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) Flanges, GOST Flanges
Production Process: Machined, Forged, Heat Treated
Flange Machining Equipment: Pushing Machine, Press machine, Sand-blasting machine, electric bevelling machine, Bending machine etc
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Coating Flange Faces : Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized, Oil Black Paint, Anti-rust Paint
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Oil And Gas Industry
Water Pipeline Industry
Chemical Industry
Nuclear Power Plant
Fabrication Industry
Natural Gas Industry

Purchase A694 Gr F65 SORF Flanges Fast Delivery & Best Price, Refer CS grade A694 F65 RTJ Flange Chemical Composition And A694 F60 Forged Fittings Mechanical Properties.


Types Of ASTM A694 Gr F60 Forged Fittings


Carbon Steel A694 F65  90 Deg Elbow

Carbon Steel A694 F65 90 Deg Elbow

Carbon Steel ASME SA694 F65 Socket Weld Tee

Carbon Steel ASME SA694 F65 Socket Weld Tee

ASME SA 694 F65 Threaded Union

ASME SA 694 F65 Threaded Union

ASTM A694 F65 Steel Threaded Hex Plug

ASTM A694 F65 Steel Threaded Hex Plug

A694 CS Gr F65 Socket Weld Flange

A694 CS Gr F65 Socket Weld Flanges

Grade F65 Carbon Steel Slip On Flange

Grade F65 Carbon Steel Slip On Flanges

High Yield Carbon Steel F65 RTJ Flange

High Yield Carbon Steel F65 RTJ Flanges

Steel Grade F65 Raised Face Flange

Steel Grade F65 Raised Face Flanges

SA 694 F65 Blind Flange

SA 694 F65 Blind Flanges

Carbon Steel A694 Grade F65 Flat Face Flange

Carbon Steel A694 Grade F65 Flat Face Flanges

ASTM A694 Gr F65 Reducing Flange

ASTM A694 Gr F65 Reducing Flanges

A694 F65 Weld Neck Flange

A694 F65 Weld Neck Flanges


SA 694 F65 Dimensions Chart


NPS
Flange (ID)
(inch)
Flange (OD)
(inch)
150# 300# 400# 600# 900#
1/2 0.84 1.875 2.125 2.125 2.125 2.50
3/4 1.06 2.25 2.625 2.625 2.625 2.75
1 1.31 2.625 2.875 2.875 2.875 3.125
1 1/4 1.66 3 3.25 3.25 3.25 3.50
1 1/2 1.91 3.375 3.75 3.75 3.75 3.875
2 2.38 4.125 4.375 4.375 4.375 5.625
2 1/2 2.88 4.875 5.125 5.125 5.125 6.50
3 3.50 5.375 5.875 5.875 5.875 6.625
4 4.50 6.875 7.125 7.00 7.625 8.125
5 5.56 7.75 8.50 8.375 9.50 9.75
6 6.62 8.75 9.875 9.75 10.50 11.375
8 8.62 11 12.125 12.00 12.625 14.125
10 10.75 13.375 14.25 14.125 15.75 17.125
12 12.75 16.125 16.625 16.50 18.00 19.625

Carbon Steel A694 Grade F65 Weight Chart


Standard Class Di. Bolt Circle Dia. No. of Bolts Bolt Size Dia. of Bolt Hole
AS4087 PN14 95 67 4 M12 14
2129 Flange Table C 95 67 4 13 14
Table D 95 67 4 13 14
Table E 95 67 4 13 14
Table F 95 67 4 13 14
Table H 114 83 4 16 17
Table J 114 83 4 16 17
ASME B16.5 Flanges ANSI 150 89 60 4 13 16
ANSI 300 95 67 4 13 16
ANSI 600 95 67 4 13 16
ANSI 900 121 83 4 19 22
ANSI 1500 121 83 4 19 22
ISO 7005 (DIN) Flange PN6 80 55 4 M10 11
PN10 95 65 4 M12 14
PN16 95 65 4 M12 14
PN20 90 60.5 4 M14 16
PN25 95 65 4 M12 14
PN40 95 65 4 M12 14

Contact US for ASTM A694 F65 Weld Neck Flanges instant delivery, View Our Complete Range Of A694 F65 Flanges, ASTM A694 F60 Carbon Steel SW union Tensile Requirements.

A694 F65 Temperature Range


Temp. °C ASTM A694 F65 Flanges Working Pressure Range
150# 300# 400# 600# 900# 1500# 2500#
-29 ~ 38 19.6 51.1 68.1 102.1 153.2 255.3 425.5
50 19.2 50.1 66.8 100.2 150.4 250.6 417.7
100 17.7 46.6 62.1 93.2 139.8 233.0 388.3
150 15.8 45.1 60.1 90.2 135.2 225.4 375.6
200 13.8 43.8 58.4 87.6 131.4 219.0 365.0
250 12.1 41.9 55.9 83.9 125.8 209.7 349.5
300 10.2 39.8 53.1 79.6 119.5 199.1 331.8
325 9.3 38.7 51.6 77.4 116.1 193.6 322.6
350 8.4 37.6 50.1 75.1 112.7 187.8 313.0
375 7.4 36.4 48.5 72.7 109.1 181.8 303.1
400 6.5 34.7 46.3 69.4 104.2 173.6 289.3
425 5.5 28.8 38.4 57.5 86.3 143.8 239.7
450 4.6 23.0 30.7 46.0 69.0 115.0 191.7
475 3.7 17.4 23.2 34.9 52.3 87.2 145.3
500 2.8 11.8 15.7 23.5 35.3 58.8 97.9
538 1.4 5.9 7.9 11.8 17.7 29.5 49.2

View High Yield CS A694 Gr F65 High Hub Flanges UNS Number, Looking to buy Carbon Steel A694 F65 Lap Joint Flanges? contact Metallect Steel, A Reliable Carbon Steel F60 Forged Full Coupling Manufacturers in India.

Check ASTM A694 F65 UNS Number


Check ASTM A694 F65 Flanges UNS NumberK03014


High Yield Carbon Steel F65 Chemical Composition


Grade C Mn P S Si
A694 Carbon Steel Gr F65 0.26-0.265 1.60-1.64 0.025-0.030 0.025-0.030 0.15-0.35

A694 Grade F65 Mechanical Properties


Element Tensile Strength Yield Strength (0.2%Offset) Elongation
ASTM A694 Gr F65 415 450 20 %

Steel Grade F65 Physical Properties


Grade Yield Strength (0.2 % Offset), minimum, ksi [MPa] Tensile Strength, min, ksi [MPa] Elongation in 2 in. or 50 millimeter, minimum % - -
Carbon Steel A694 Grade F65 450 65 530 77 20
