EIL Approved ASTM A694 Gr F42 Forged Fittings Manufacturers In India, Contact For Best ASTM A694 Gr F42 SORF Flange Low-price In Mumbai.


The materials used to manufacture ASTM A694 F42 Flanges are to be administered a chemical analysis, wherein the alloy used must conform to its chemical, testing and tensile requirements. Apart from the various carbon steel grades the components that fall under this specification could be produced from alloy steel as well. Generally, the ASTM A694 Gr F42 Forged Fittings tend to exhibit better mechanical properties, along with improved ductility and fatigue and impact resistance properties. ASTM A694 Gr F42 SORF Flange provides easy access to a piping system for purposes like cleaning, inspection or modification in addition to forming the system.

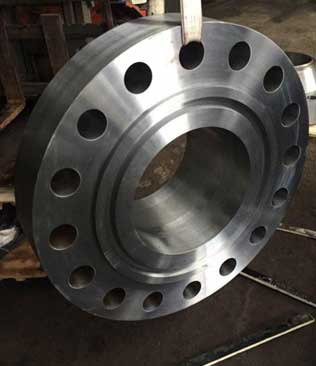

ASTM A694 F42 Flanges

ASTM A694 F42 Flanges

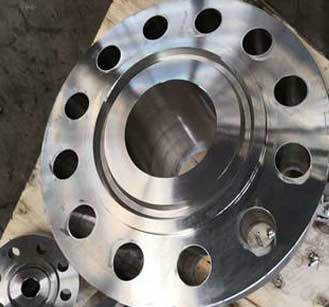

ASTM A694 Gr F42 Forged Fittings

ASTM A694 Gr F42 Forged Fittings

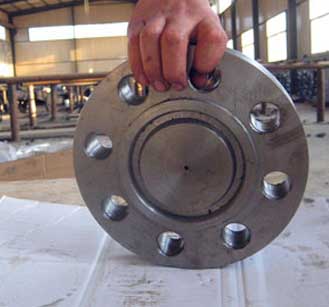

SA694 Gr F42 SORF Flange

SA694 Gr F42 SORF Flange



Specification Of SA 694 F42 Screwed Fittings, Carbon Steel F42 RTJ Flange Tensile Requirements, Check Availability ASTM A694 Gr F42 Lap Joint Flanges In India.


What Is ASTM A694 F42 Flanges?


Used in conjunction with a stub end, the benefit of using ASTM A694 Gr F42 Lap Joint Flanges is that there will be no issues with regards to the alignment of the bolt hole. Typically a Carbon Steel F42 RTJ Flange is used in the petroleum, petrochemical as well as the oil and gas industry as they are well suited to be used for demanding operations such as the conveyance of media across the factory and site. Because carbon steels have a superior hardness and toughness properties, while having a reasonable cost, many buyers prefer using the SA 694 F42 Screwed Fittings, especially in the oil and gas industry.


ASTM A694 Gr F42 Forged Fittings Specification


Specification : ASTM A694 F42 Flanges
Production Process: Machined, Forged, Heat Treated
Coating Flange Faces : Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Forged Type : NPT (Threaded), BSPT, BSPP.
Design For Size: ASME, DIN, JIS, ANSI, BS, PN, EN, ASA
Flange Machining Equipment: Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Standards: ASME B16.38 Flanges, EN-1092 Flanges, BS10 Flanges, DIN Flanges, PN Flanges, JIS Flanges, ISO Flanges, UNI Flanges, AWWA Flanges, MSS SP44 Flanges, ASME B16.5 Flanges, ASME B16.47 (Series A, Series B) GOST Flanges
Application: Oil And Gas Industry
Fabrication Industry
Chemical Industry
Natural Gas Industry
Water Pipeline Industry
Nuclear Power Plant
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)

ASTM A694 Gr F42 SORF Flange Tensile Requirements


Grade Yield Strength (0.2 % Offset), min, ksi [MPa] Tensile Strength, min, ksi [MPa] Elongation in 2 in. or 50 mm, min %
F42 42 [290] 60 [415] 20

Carbon Steel A694 Grade F42 Threaded Pipe Fittings Thermal Properties, Norma A694 F42 Pipe Flanges Magnetic Properties, Suppliers Of ASTM A694 Grade F42 Blind Flanges In India.


ASTM A694 Gr F42 Pipe Flanges Types


ASTM A694 Gr F42 Reducing Flange

ASTM A694 Gr F42 Reducing Flange

A694 F42 Weld Neck Flange

A694 F42 Weld Neck Flange

SA 694 F42 Blind Flange

SA 694 F42 Blind Flange

Carbon Steel A694 Grade F42 Flat Face Flange

Carbon Steel A694 Grade F42 Flat Face Flange

High Yield Carbon Steel F42 RTJ Flange

High Yield Carbon Steel F42 RTJ Flange

Steel Grade F42 Raised Face Flange

Steel Grade F42 Raised Face Flange

A694 CS Gr F42 Socket Weld Flange

A694 CS Gr F42 Socket Weld Flange

Grade F42 Carbon Steel Slip On Flange

Grade F42 Carbon Steel Slip On Flange

Carbon Steel A694 F42  90 Deg Elbow

Carbon Steel A694 F42 90 Deg Elbow

Carbon Steel ASME SA694 F42 Socket Weld Tee

Carbon Steel ASME SA694 F42 Socket Weld Tee

ASME SA 694 F42 Threaded Union

ASME SA 694 F42 Threaded Union

ASTM A694 F42 Steel Threaded Hex Plug

ASTM A694 F42 Steel Threaded Hex Plug


CS A694 Grade F42 Thermal Properties


Coefficient of thermal expansion 1.32E-5 - 1.38E-5 1/K at 20 °C Typical for Low Carbon Steel
Max service temperature 500 °C Typical for Carbon Steel
Melting point 1480 - 1526 °C Typical for Low Carbon Steel

SA 694 F42 Magnetic Properties


Curie temperature 770 °C at 20 °C Typical for Low Carbon Steel

A694 F42 Flanges Tensile Requirements


Grade Yield Strength (0.2 % Offset), min, ksi [MPa] Tensile Strength, min, ksi [MPa] Elongation in 2 in. or 50 mm, min %
F42 42 [290] 60 [415] 20

ASME SA 694 F42 Flanges Order Custom Sizes Online, Carbon Steel F42 Forged Socket Weld Fittings Best Price & Fast Delivery, We Provide A694 F42 High Pressure Forged Fittings Fastest Delivery To Our Customers.

Norma SA 694 F42 Flanges Properties


Density P 7.8 - 7.9 g/cm³ at 20 °C Typical for Low Carbon Steel

ASTM A694 Grade F42 Thermal


Coefficient of thermal expansion 1.32E-5 - 1.38E-5 1/K at 20 °C Typical for Low Carbon Steel
Max service temperature 500 °C Typical for Carbon Steel
Melting point 1480 - 1526 °C Typical for Low Carbon Steel


Chemical Requirements Of A694 Carbon Steel Gr F42 Threaded Flanges, ASTM A694 F42 Carbon Steel Threaded Fittings Mechanical Properties, Manufacturers Of ASTM A694 F42 Flanges In India.

Carbon Steel F42 Forged Socket Weld Fittings Chemical Requirements


Gr C Mn P S Si
A694 F42 0.26-0.265 1.60-1.64 0.025-0.030 0.025-0.030 0.15-0.35

Carbon Steel A694 Grade F42 Threaded Pipe Fittings Mechanical Properties


Element Tensile Strength Yield Strength (0.2%Offset) Elongation
SA694 F42 415 290 20 %
