PED Certified Carbon Steel Equal Tee A234 WPB Manufacturers in Mumbai, India, Dimensions Of Buttweld A234 Reducing Tee In MM.


Usually, carbon steel alloyed ASTM A234 WPB Tee is made by either pressing, hammering, upsetting, rolling, piercing, extruding, bending, fusion welding or by machining. On several occasions, these fittings could be processed by a combination of two or more of these operations. The WPB Carbon Steel Buttweld Equal Tee are available across the world in a seamless or a welded manner.

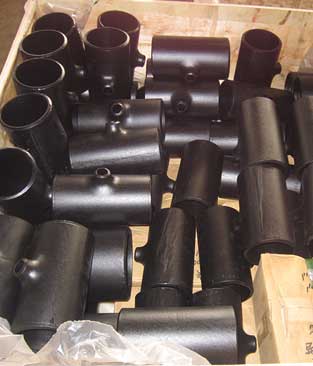

ASTM A234 WPB Tee

ASTM A234 WPB Tee

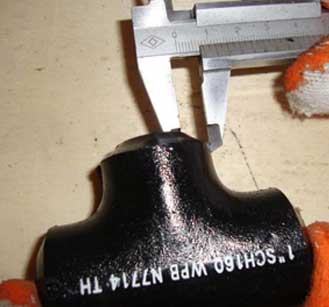

Carbon Steel Equal Tee A234 WPB

Carbon Steel Equal Tee A234 WPB

Buttweld A234 Reducing Tee

Buttweld A234 Reducing Tee



What Is ASTM A234 WPB Tee?


During the manufacturing process of these carbon steel pipe fittings, there are certain activities that are required to be noted:

Firstly, no injurious imperfections or welding defects are to be created on the Carbon Steel Equal Tee A234 WPB. Secondly, after the performance of any shaping or forming operations, the fittings at a suitable temperature, it shall be cooled in an appropriate environment. Which essentially, means that the Buttweld A234 Reducing Tee fitting is to be cooled to a temperature that below the critical range with no formation of defects on these fittings during the cooling procedures. However, it must be seen to it that manufacturers use a cooling process on the ASME B16.11 Lateral Tee A234 Wpb which must not be more rapid as compared to cooling in air.
Lastly, suitable inspection is to be mandatorily performed on the CS A234 Gr WPB Tee Pipe Fittings using appropriate test methods such as hydrostatic test, hardness test as well as tensile test after its manufacture.


ASTM A234 Gr WPB Tee Dimensions Chart


ASTM A234 Gr WPB Tee Dimensions Chart

Nominal
Pipe Size
Dimensions of Run Dimensions of Branch Pipe
Schedule
Weight
Pounds
Outside
Diameter
Wall
Thickness T
Inside
Diameter
Center
to End C
Outside
Diameter
Wall
Thickness T
Outside
Diameter
Center
to End M
3/4 x 1/2 1.05 0.113 0.824 1.12 0.84 0.109 0.622 1.12 40 0.41
1 1/2 x 1 1/4 1.9 0.145 1.61 2.25 1.66 0.14 1.38 2.25 40 2
1 1/2 x 1 1.9 0.145 1.61 2.25 1.32 0.133 1.05 2.25 40 1.9
1 1/2 x 3/4 1.9 0.145 1.61 2.25 1.05 0.113 0.824 2.25 40 1.8
1 1/2 x 1/2 1.9 0.145 1.61 2.25 0.84 0.109 0.622 2.25 40 1.8
1 1/4 x 1 1.66 0.14 1.38 1.88 1.32 0.133 1.05 1.88 40 1.3
1 1/4 x 3/4 1.66 0.14 1.38 1.88 1.05 0.113 0.824 1.88 40 1.3
1 1/4 x 1/2 1.66 0.14 1.38 1.88 0.84 0.109 0.622 1.88 40 1.3
1 x 3/4 1.32 0.133 1.05 1.5 1.05 0.113 0.824 1.5 40 0.81
1 x 1/2 1.32 0.133 1.05 1.5 0.84 0.109 0.622 1.5 40 0.78
2 1/2 x 2 2.88 0.203 2.47 3 2.38 0.154 2.01 2.75 40 5.4
2 1/2 x 1 1/2 2.88 0.203 2.47 3 1.9 0.145 1.61 2.62 40 5.1
2 1/2 x 1 1/4 2.88 0.203 2.45 3 1.66 0.14 1.38 2.5 40 4.8
2 1/2 x 1 2.88 0.203 2.45 3 1.32 0.133 1.05 2.25 40 4.6
2 x 1 1/2 2.38 0.154 2.07 2.5 1.9 0.145 1.61 2.38 40 3.1
2 x 1 1/4 2.38 0.154 2.07 2.5 1.66 0.14 1.38 2.25 40 3
2 x 1 2.38 0.154 2.07 2.5 1.32 0.133 1.05 2 40 2.8
2 x 3/4 2.38 0.154 2.07 2.5 1.05 0.113 0.824 1.75 40 2.5
3 1/2 x 3 4 0.226 3.55 3.75 3.5 0.216 3.07 3.62 40 9.8
3 1/2 x 2 1/2 4 0.226 3.55 3.75 2.88 0.203 2.47 3.5 40 9.4
3 1/2 x 2 4 0.226 3.55 3.75 2.38 0.154 2.07 3.25 40 9.2
3 1/2 x 1 1/2 4 0.226 3.55 3.75 1.9 0.145 1.61 3.12 40 8.9
3 x 2 1/2 3.5 0.216 3.07 3.38 2.88 0.203 2.47 3.25 40 7.2
3 x 2 3.5 0.216 3.07 3.38 2.38 0.154 2.07 3 40 7
3 x 1 1/2 3.5 0.216 3.07 3.38 1.9 0.145 1.61 2.88 40 6.8
3 x 1 1/4 3.5 0.216 3.07 3.38 1.66 0.14 1.38 2.75 40 6.6
3 x 1 3.5 0.216 3.07 3.38 1.315 0.133 1.05 2 5/8 40 6.5
4 x 3 1/2 4.5 0.237 4.03 4.12 4 0.226 3.55 4 40 11.9
4 x 3 4.5 0.237 4.03 4.12 3.5 0.216 3.07 3.88 40 11.6
4 x 2 1/2 4.5 0.237 4.03 4.12 2.875 0.203 2.47 3.75 40 11.4
4 x 2 4.5 0.237 4.03 4.12 2.38 0.154 2.07 3.5 40 11.2
4 x 1 1/2 4.5 0.237 4.03 4.12 1.9 0.145 1.61 3.38 40 11.2
5 x 4 5.56 0.258 5.05 4.88 4.5 0.237 4.03 4.62 40 20.5
5 x 3 1/2 5.56 0.258 5.05 4.88 4 0.226 3.55 4.5 40 20
5 x 3 5.56 0.258 5.05 4.88 3.5 0.216 3.07 4.38 40 19.4
5 x 2 1/2 5.56 0.258 5.05 4.88 2.88 0.203 2.47 4.25 40 19
5 x 2 5.56 0.258 5.01 4.88 2.38 0.154 2.07 4.12 40 18.8
6 x 5 6.62 0.28 6.07 5.62 5.62 0.258 5.05 5.38 40 32
6 x 4 6.62 0.28 6.07 5.62 4.5 0.237 4.026 5.12 40 30.5
6 x 3 1/2 6.62 0.28 6.07 5.62 4 0.226 3.55 5 40 30
6 x 3 6.62 0.28 6.07 5.62 3.5 0.216 3.07 4.88 40 30
6 x 2 1/2 6.62 0.28 6.07 5.62 2.88 0.203 2.47 4.75 40 29.7
6 x 2 6.62 0.28 6.07 5.62 2.38 0.154 2.07 4.75 40 29
8 x 6 8.62 0.322 7.981 7 6.62 0.28 6.065 6.62 40 56.5
8 x 5 8.62 0.322 7.981 7 5.56 0.258 5.047 6.38 40 54
8 x 4 8.62 0.322 7.981 7 4.5 0.237 4.026 6.12 40 53.2
8 x 3 1/2 8.62 0.322 7.981 7 4 0.226 3.548 6 40 53
8 x 3 8.62 0.322 7.981 7 3.5 0.216 3.068 6 40 52
10 x 8 10.75 0.365 10.02 8.5 8.62 0.322 7.981 8 40 86.5
10 x 6 10.75 0.365 10.02 8.5 6.62 0.28 6.065 7.62 40 85.9
10 x 5 10.75 0.365 10.02 8.5 5.56 0.258 5.047 7.5 40 82.5
10 x 4 10.75 0.365 10.02 8.5 4.5 0.237 4.026 7.25 40 82
10 x 3 10.75 0.365 10.02 8.5 3.5 0.216 3.068 7.25 40 79
12 x 10 12.75 0.375 12 10 10.75 0.365 10.02 9.5 * 123
12 x 8 12.75 0.375 12 10 8.62 0.322 7.981 9 * 120
12 x 6 12.75 0.375 12 10 6.62 0.28 6.065 8.62 * 118
12 x 5 12.75 0.375 12 10 5.56 0.258 5.047 8.5 * 117
12 x 4 12.75 0.375 12 10 4.5 0.237 4.026 8.5 * 112
14 x 12 14 0.375 13.25 11 12.75 0.375 12 10.62 30 151
14 x 10 14 0.375 13.25 11 10.75 0.365 10.02 10.12 30 148
14 x 8 14 0.375 13.25 11 8.62 0.322 7.981 9.75 30 146
14 x 6 14 0.375 13.25 11 6.62 0.28 6.065 9.38 30 145
16 x 14 16 0.375 15.25 12 14 0.375 13.25 12 30 221
16 x 12 16 0.375 15.25 12 12.75 0.375 12 11.62 30 213
16 x 10 16 0.375 15.25 12 10.75 0.365 10.02 11.12 30 197
16 x 8 16 0.375 15.25 12 8.62 0.322 7.981 10.75 30 190
16 x 6 16 0.375 15.25 12 6.62 0.28 6.065 10.38 30 180
18 x 16 18 0.375 17.25 13.5 16 0.375 15.25 13 * 262
18 x 14 18 0.375 17.25 13.5 14 0.375 13.25 13 * 248
18 x 12 18 0.375 17.25 13.5 12.75 0.375 12 12.62 * 241
18 x 10 18 0.375 17.25 13.5 10.75 0.365 10.02 12.12 * 229
18 x 8 18 0.375 17.25 13.5 8.62 0.322 7.981 11.75 * 216
20 x 18 20 0.375 19.25 15 18 0.375 17.25 14.5 20 352
20 x 16 20 0.375 19.25 15 16 0.375 15.25 14 20 339
20 x 14 20 0.375 19.25 15 14 0.375 13.25 14 20 327
20 x 12 20 0.375 19.25 15 12.75 0.375 12 13.62 20 315
20x 10 20 0.375 19.25 15 10.75 0.365 10.02 13.12 20 305
20 x 8 20 0.375 19.25 15 8.62 0.322 7.981 12.75 20 293
24 x 20 24 0.375 23.25 17 20 0.375 19.25 17 20 500
24 x 18 24 0.375 23.25 17 18 0.375 17.25 16.5 20 487
24 x 16 24 0.375 23.25 17 16 0.375 15.25 16 20 475
24 x 14 24 0.375 23.25 17 14 0.375 13.25 16 20 465
24 x 12 24 0.375 23.25 17 12.75 0.375 12 15.62 20 450
24 x 10 24 0.375 23.25 17 10.75 0.365 10.02 15.12 20 447
30 x 24 30 0.38 29.24 22 24 0.38 23.24 21 * 795
30 x 20 30 0.38 29.24 22 20 0.38 19.24 20 * 749
30 x 18 30 0.38 29.24 22 18 0.38 17.24 19.5 * 727
36 x 30 36 0.38 35.24 26.5 30 0.38 29.24 25 * 1,207
36 x 24 36 0.38 35.24 26.5 24 0.38 23.24 24 * 1,129
36 x 20 36 0.38 35.24 26.5 20 0.38 19.24 23 * 1,072
36 x18 36 0.38 35.24 26.5 18 0.38 17.24 22.5 * 1,136
42 x 40 42 0.38 41.24 30 40 0.38 39.24 28 * 1,468
42 x 36 42 0.38 41.24 30 36 0.38 35.24 28 * 1,415
42 x 30 42 0.38 41.24 30 30 0.38 29.24 28 * 1,327
42 x 24 42 0.38 41.24 30 24 0.38 23.24 26 * 1,248
48 x 42 48 0.38 47.24 35 42 0.38 41.24 32 * 2,207
48 x 38 48 0.38 47.24 35 38 0.38 37.24 32 * 2,154
48 x 36 48 0.38 47.24 35 36 0.38 35.24 31 * 2,127
48 x 30 48 0.38 47.24 35 30 0.38 29.24 30 * 2,048

Check Attractive Price Offer On Lateral Tee A234 Wpb In India, ASTM A234 Gr WPB Tee Specification, Carbon Steel ASTM A234 WPB Pipe Tee Fittings Weight Chart.


Buttweld A234 Reducing Tee Specification


Standard Specification : ASTM A234 WPB Tee
Standard: MSS-SP-43 Type A, MSS-SP-43 Type B, ANSI B16.28, JIS B2313, ANSI B16.9, JIS B2312, MSS-SP-43 Type b
Application: Natural Gas Industry
Oil And Gas Industry
Chemical Industry
Nuclear Power Plant
Fabrication Industry
Water Pipeline Industry
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Coating Fitting Faces : Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint, Cold and Hot Dip Galvanized
Fitting Machining Equipment: Electric bevelling machine, Press machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Thickness: View Our Thickness: SCH 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Rating Pressure: Pressure Rating Of: 3000 LBS, 6000 LBS, 9000 LBS
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )

WPB Carbon Steel Buttweld Equal Tee Weight Chart


NPS OD Inside
Dia.
Wall
Thick.
Center
To End
Pipe
Sch
Weight
Pound
1/2 0.84 0.546 0.147 0.62 80 0.15
3/4 1.05 0.742 0.154 0.75 80 0.16
1 1.32 0.957 0.179 0.88 80 0.28
1 1/4 1.66 1.28 0.191 1 80 0.45
1 1/2 1.9 1.5 0.2 1.12 80 0.61
2 2.38 1.94 0.218 1.38 80 1.2
2 1/2 2.88 2.32 0.276 1.75 80 2
3 3.5 2.9 0.3 2 80 3.3
3 1/2 4 3.36 0.318 2.25 80 4.5
4 4.5 3.83 0.337 2.5 80 6.2
5 5.56 4.81 0.375 3.12 80 10.5
6 6.62 5.76 0.432 3.75 80 17
8 8.62 7.63 0.5 5 80 34.3
10 10.75 9.75 0.5 6.25 60 53.5
12 12.75 11.75 0.5 7.5 * 77.6
14 14 13 0.5 8.75 * 100
16 16 15 0.5 10 40 134
18 18 17 0.5 11.25 * 170
20 20 19 0.5 12.5 30 209
24 24 23 0.5 15 * 302
30 30 29 0.5 18.5 20 475.1
36 36 35 0.5 22.25 20 686.1
42 42 41 0.5 26 * 936.1
48 48 47 0.5 29.88 * 1250

Suppliers Of CS A234 Gr WPB Tee Pipe Fittings In Mumbai, India, Get Free Quote For ASTM A234 Tee, Equivalent Grades Of WPB Carbon Steel Buttweld Equal Tee.


Types Of Carbon Steel Equal Tee A234 WPB


ASTM A234 gr WPB tee

ASTM A234 gr WPB tee

Tee Std Wt Stl A234 Wpb

Tee Std Wt Stl A234 Wpb

Lateral Tee A234 Wpb

Lateral Tee A234 Wpb

Bw ASTM A234 WPB Tee

Bw ASTM A234 WPB Tee

ASTM A234 Reducing Tee

ASTM A234 Reducing Tee

CS ASTM A234 gr WPB Equal Tee

CS ASTM A234 gr WPB Equal Tee

ANSI B16.9 CS A234 WPB Equal Tee

ANSI B16.9 CS A234 WPB Equal Tee

 WPB Carbon Steel Buttweld Equal Tee

WPB Carbon Steel Buttweld Equal Tee

ASTM A234 WPB Carbon Steel Buttweld Tee

ASTM A234 WPB Carbon Steel Buttweld Tee

A234 Grade WPB Buttweld Unequal Tee

A234 Grade WPB Buttweld Unequal Tee

A234 Gr WPB Tee Pipe Fittings

A234 Gr WPB Tee Pipe Fittings

ASME SA A234 Grade WPB Tee

ASME SA A234 Grade WPB Tee


Chemical And Mechanical Composition Of Carbon Steel A234 WPB Butt Weld Tee, Tee ASTM A234 Gr Wpb Stockist In India, Check Our Global Sales Network For ASTM A234 WPB Carbon Steel Buttweld Tee.

Lateral Tee A234 Wpb Chemical Composition


Grade C Mn P S Si Cr Mo Ni Cu V Nb
WPB 0.3 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WPC 0.35 0.29-1.06 0.05 0.058 0.1min 0.4 0.15 0.4 0.4 0.08 0.02
WP11 CL1 0.05-0.15 0.30-0.60 0.03 0.03 0.50-1.00 1.00-1.50 0.44-0.65 - - - -
WP11 CL2/3 0.05-0.20 0.30-0.80 0.04 0.04 0.50-1.00 1.00-1.50 0.44-0.65 - - - -

We provide Multiple Payment Options Of Tee ASTM A234 Gr Wpb Fittings, Contact US Today For Buy Bw Tee Wpb, Manufacturers Of Carbon Steel ASTM A234 WPB Tee In India.

ASTM A234 Tee Mechanical Properties


Tensile Requirements WPB WPC, WP11CL2 WP11CL1  WP11CL3
Tensile Strength, min, ksi[MPa] 60-85 70-95 60-85  75-100
(0.2% offset or 0.5% extension-under-load) [415-585] [485-655] [415-585]  [520-690]
Yield Strength, min, ksi[MPa] 32 40 30 45
[240] [275] [205] [310]

CS ASTM A234 WPB Pipe Tee Equivalent


Pipe Pipe Tee Fitting Flanges Valves Bolts & Nuts
A106 Gr A A234 Gr WPA tee A105 A216 Gr WCB A193 Gr B7
A194 Gr 2H
A106 Gr B ASTM A234 gr WPB tee A105 A216 Gr WCB
A106 Gr C A234 Gr WPC tee A105 A216 Gr WCB
