Check Alloy Steel SA 182 Gr F9 SORF Flanges Chemical Composition, ASTM A182 F9 Forged Elbow Equivalent.


In addition to having superior mechanical properties and high tensile strength, the ASTM A182 F9 Flange has good corrosion resistance properties. Although the properties of the fitting depend on the alloy used to manufacture them. Another process that improves the mechanical properties of ASTM A182 F9 Alloy Steel Flanges is the forging process. Forging these components leads to an alignment f the grain to the shape, thereby resulting in the flange or the fitting i.e. ASTM A182 F9 Forged Elbow getting improved mechanical strength, good impact and fatigue resistance as well.


Connected to the pipe or the fittings with the help of two fillet welds, one weld is executed inside the Alloy Steel SA 182 Gr F9 SORF Flanges, whereas the other one is welded outside the cavity of the flange. Also known as Hubbed Flanges these components are easy to recognize because of their slim and compact shape. The bore size of a slip-on flange is constructed larger as compared to the outside diameter of the connecting pipe. This construction is what makes it possible for the pipe to slide inside the flange, which is then finally connected by the execution of a fillet weld.

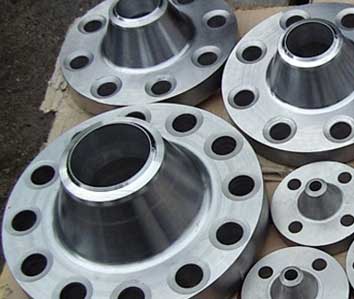

ASTM A182 F9 Flange
ASTM A182 F9 Flange

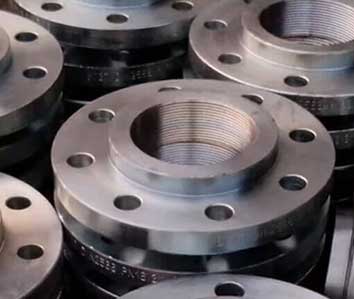

SA 182 Gr F9 SORF Flanges
SA 182 Gr F9 SORF Flanges

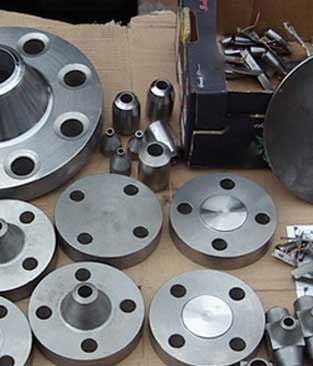

ASTM A182 F9 Forged Elbow
ASTM A182 F9 Forged Elbow


Low Alloy Steel F9 Socket Weld Fittings Chemical Composition


Grade C Mn Si S P Cr Mo
ASTM A182 F9 Flange 0.15 0.3 - 0.6 0.5 - 1 0.03 0.03 8 - 10 0.9 - 1.1

AS Gr F9 Pipe Flanges Equivalent


Material Group Common Name Type UNS Forging Spec. Casting Spec. Equivalent DIN
9Cr-1Mo K90941 A182-F9 A217-C12 X 12 CrMo 9 1 1.7386 High temp erosive refinery service

Specification Of AS Gr F9 Pipe Flanges, Refer ASTM A182 F9 Alloy Steel Flanges Mechanical Properties, Check Low AS F9 Socket Weld Fittings P Number.


What Is ASTM A182 F9 Flange?


Considered to be ideal for use in small size and high pressure piping systems, the Low AS F9 Socket Weld Fittings are not well suited for the transference of highly corrosive fluids across pipping systems. Their static strength of socket weld AS Gr F9 Pipe Flanges is similar to that of a slip-on flange. However, their fatigue strength is much higher due to the presence of a single fillet weld, instead of double fillet weld.


SA 182 Gr F9 SORF Flanges Specification


Specification : ASTM A182 F9 Flange
Standards: BS10 Flange, DIN Flange, PN Flange, JIS Flange, ISO Flange, GOST Flange, UNI Flange, AWWA Flange, MSS SP44 Flange, ASME B16.38 Flange, EN-1092 Flange, ASME B16.5 Flange, ASME B16.47 (Series A, Series B) Flange
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Production Process: Forged, Heat Treated and Machined
Coating Flange Faces : Yellow Transparent, Cold and Hot Dip Galvanized, Anti-rust Paint, Zinc Plated, Oil Black Paint
Common Types of Flange : Flanges 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Flange Machining Equipment: Sand-blasting machine, Press machine, Bending machine, Pushing Machine, electric bevelling machine etc
Design For Size: EN Flange, ASA Flange, ANSI Flange, BS Flange, PN Flange, ASME Flange, DIN Flange, JIS Flange
Pressure: Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS
Dimensions Class: 2000# Fittings, 3000# Fittings, 6000# Fittings, 9000# Fittings
Forged Type : NPT (Threaded) Fittings, BSPT Fittings, BSPP Fittings.
Connect Type Type: SMF Flange, LJF Flange, RF Flange, FF Flange, RTJ Flange, LMF Flange
Application: Oil And Gas Industry
Water Pipeline Industry
Nuclear Power Plant
Fabrication Industry
Natural Gas Industry
Chemical Industry

Chrome Alloy Steel A182 F9 Forged Pipe Fittings Mechanical Properties


Tensile Strength Yield Strength (0.2%Offset) Elongation
380 585 20 %

Manufacturers Of ASTM A182 F9 High Pressure Forged Fittings In India, Alloy Steel A182 Gr F9 Threaded Flanges Size Chart, ANSI B16.5 SA 182 Gr F9 Slip On Flanges Temperature Range.


ASME B16.5 Alloy Steel A182 Gr F9 Threaded Flanges Pressure Rating


ANSI/ASME B16.34 ANSI PRESSURE RATING
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 265 695 925 1390 2085 3470 5785
200 260 680 905 1360 2035 3395 5660
300 230 655 870 1305 1955 3260 5435
400 200 640 855 1280 1920 3200 5330
500 170 620 830 1245 1865 3105 5180
600 140 605 805 1210 1815 3025 5040
650 125 590 785 1175 1765 2940 4905
700 110 570 755 1135 1705 2840 4730
750 95 530 710 1065 1595 2660 4430
800 80 510 675 1015 1525 2540 4230
850 65 485 650 975 1460 2435 4060
900 50 450 600 900 1350 2245 3745
950 35 280 375 560 845 1405 2345
1000 20 165 220 330 495 825 1370

Get instant delivery of Low Alloy Steel F9 Socket Weld Fittings, ASME B16.5 A182 F9 Class 2 Flange Suppliers In India, We Provide A Complete Range Of ASTM A182 F9 Tee.

Alloy Steel A182 F9 Forged Pipe Fittings Types


Alloy Steel SA 182 Gr F9 Steel RTJ Flange

Alloy Steel SA 182 Gr F9 Steel RTJ Flange

Alloy Steel A182 Grade F9 Raised Face Flange

Alloy Steel A182 Grade F9 Raised Face Flange

AS A182 F9 Socket Weld Flange

AS A182 F9 Socket Weld Flange

Steel A182 F9 Alloy Steel Slip On Flange

Steel A182 F9 Alloy Steel Slip On Flange

Alloy Steel F9 Reducing Flange

Alloy Steel F9 Reducing Flange

Alloy Steel A182 F9 Weld Neck Flange

Alloy Steel A182 F9 Weld Neck Flange

Alloy A182 Gr F9 Blind Flange

Alloy A182 Gr F9 Blind Flange

Alloy Steel ASTM A182 Grade F9 Flat Face Flange

Alloy Steel ASTM A182 Grade F9 Flat Face Flange

Alloy Steel F9 Forged 90 Degree Elbow

Alloy Steel F9 Forged 90 Degree Elbow

AS A182 F9 Socket Weld Cap

AS A182 F9 Socket Weld Cap

Alloy SA182 F9 Forged 45 Degree Elbow

Alloy SA182 F9 Forged 45 Degree Elbow

ASTM A182 Gr F9 SW Full Coupling

ASTM A182 Gr F9 SW Full Coupling


View Dimensions Of Chrome Alloy Steel A182 F9 Forged Pipe Fittings In Millimetar, Alloy Steel SA182 F9 Plate Flange Weight Chart, Buy Gr.F9 Lapped joint Flanges small quantity at Factory Price.

Refer A182 F9 P Number


P# G# ISO Spec Type UNS KSI(MPa) Product Form
5B 1 5.4 A/SA-182 F9 K90941 85(585) Forgings
