Refer ASTM A182 F5 Forged Fittings Specification Material And Alloy Steel SA 182 Gr F5 Pipe Flanges Equivalent.


While the specified ASTM A182 F5 Flange is used in high temperature applications, the manufacturing process of these flanges must conform to the recommendations given in the specification including mechanical properties, chemistry as well as the testing parameters. The different type of ASTM A182 F5 Forged Fittings include threaded, slip on, weld neck, socket weld, blind and lap joint flanges. While the flange is a device that aids the worker to inspect, clean or modify a piping system, the functioning of each flange differs from the other. In the case of Threaded flanges, these components are joined to pipes by screwing the pipe onto the flange, without the use of seam welds. Although in special cases, small welds could be applied to these flanges in order to increase the strength of the connection.


Alloy Steel SA182 F5 Threaded Fitting is available in sizes up to 4 inches and in multiple pressure ratings. However, these fittings tend to be used, mostly, in small size piping, especially for low pressure and low temperature applications, such as water and air utility services. Moreover, Threaded flanges are also a mandatory requirement and are used as Alloy Steel SA 182 Gr F5 Pipe Flanges in explosive areas, such as gas stations and plants, since the execution of welded connections in such environments would be hazardous.

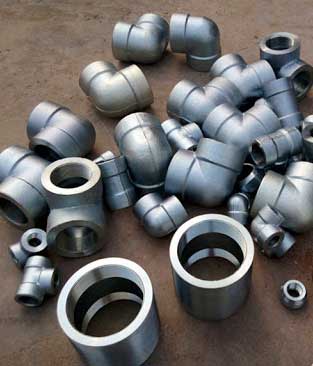

ASTM A182 F5 Flange
ASTM A182 F5 Flange

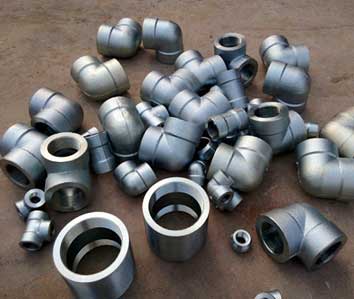

ASTM A182 F5 Forged Fittings
ASTM A182 F5 Forged Fittings
Alloy Steel SA 182 Gr F5 Pipe Flanges
Alloy Steel SA 182 Gr F5 Pipe Flanges


Purchase Low Alloy Steel SA182 F5 Threaded Fitting Large Or Small Quantity at Factory Price, AS F5 Forged Elbow Manufacturers In India, View Alloy Steel F5 Flanges Type.


What Is ASTM A182 F5 Flange?


The SA182 F5 SORF Flange, or as known as Hubbed Flanges, on the other hand, could be connected to the pipe or the fittings by using two fillet welds, one executed on the inside whereas the other fillet weld is to be done on the outside the cavity of the flange. The bore size of a slip-on flange or SORF is larger as opposed to the outside diameter of the connecting pipe. Since the pipe has to slide inside the SORF flange in order to be connected by the execution of a fillet weld.


A popular device used to change the direction of the flow, the AS F5 Forged Elbow could be either angled at 22.5, 45 or 90 degrees unless otherwise specified by the buyer.


ASTM A182 F5 Forged Fittings Specification


Specification : ASTM A182 F5 Flange
Flange Machining Equipment: Bending machine, Pushing Machine, Sand-blasting machine, Press machine, electric bevelling machine etc
Dimensions Class: 2000# Fittings, 3000# Fittings, 6000# Fittings, 9000# Fittings
Production Process: Forged, Heat Treated and Machined
Coating Flange Faces : Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized, Oil Black Paint
Forged Type : NPT (Threaded) Fittings, BSPT Fittings, BSPP Fittings.
Connect Type Type: RTJ Flange, LMF Flange, SMF Flange, LJF Flange, RF Flange, FF Flange
Design For Size: ASME Flange, DIN Flange, JIS Flange, EN Flange, ASA Flange, ANSI Flange, BS Flange, PN
Pressure: Check Pressure Rating Of Socket, Threaded: 3000 LBS, 6000 LBS, 9000 LBS
Standards: MSS SP44 Flange, ASME B16.38 Flange, EN-1092 Flange, BS10 Flange, DIN Flange, PN Flange, JIS Flange, ISO Flange, GOST Flange, UNI Flange, AWWA Flange, ASME B16.5 Flange, ASME B16.47 (Series A, Series B) Flange
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Common Types of Flange : Flanges 150 LB WNRF
Class 300 RTJ
600# BLRF
Class 900 SORF
Application: Oil And Gas Industry
Water Pipeline Industry
Nuclear Power Plant
Fabrication Industry
Natural Gas Industry
Chemical Industry

ASME B16.5 Alloy Steel F5 Flanges Equivalent


Material Group Common Name Type UNS Forging Spec. Casting Spec. Equivalent DIN
5Cr-1/2Mo K41545 A182-F5/F5a A217-C5 12CRMO195 1.7362 High temp refinery service

A182 F5 Cl.2 Ring Type Joint Flange Heat Treatment, Largest Supplier Of SA182 F5 SORF Flange In Mumbai, India, We provide Chromium Alloy Steel A182 F5 Socket weld Fittings Expert Cutting Service.


Types Of Alloy Steel SA 182 Gr F5 Pipe Flanges


Alloy Steel F5 Reducing Flange

Alloy Steel F5 Reducing Flange

Alloy Steel A182 F5 Weld Neck Flange

Alloy Steel A182 F5 Weld Neck Flange

Steel A182 Gr F5 Blind Flange

Steel A182 Gr F5 Blind Flange

ASTM A182 Grade F5 Flat Face Flange

ASTM A182 Grade F5 Flat Face Flange

Alloy Steel SA 182 Gr F5 Steel RTJ Flange

Alloy Steel SA 182 Gr F5 Steel RTJ Flange

Alloy Steel A182 Grade F5 Raised Face Flange

Alloy Steel A182 Grade F5 Raised Face Flange

AS A182 F5 Socket Weld Flange

AS A182 F5 Socket Weld Flange

Steel A182 F5 Alloy Steel Slip On Flange

Steel A182 F5 Alloy Steel Slip On Flange

Alloy Steel F5 Forged 90 Degree Elbow

Alloy Steel F5 Forged 90 Degree Elbow

Alloy Steel A182 F5 Socket Weld Cap

Alloy Steel A182 F5 Socket Weld Cap

SA182 F5 Forged 45 Degree Elbow

SA182 F5 Forged 45 Degree Elbow

ASTM A182 Gr F5 SW Full Coupling

ASTM A182 Gr F5 SW Full Coupling


Refer Alloy Steel ASTM A182 Grade F5 Plate Flange Size Chart, 4340 Alloy Steel A182 Grade F5 BLRF Flanges Chemical Composition, Cast Alloy Steel F5 Class 6000 Threaded Plug Mechanical Properties.

Alloy Steel A182 F5 Material Chemical Composition


Grade C Mn Si S P Cr Mo
ASTM A182 F5 Flanges 0.15 0.3 - 0.6 0.5 0.03 0.03 4 - 6 0.044 - 0.65

ASTM A182 F5 Flange Mechanical Properties


Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
SA182 Gr F5 275 485 20

Chromoly AS F5 Forged Tee Best Price & Fast Delivery, Visit Alloy Steel A182 F5 Material Factory In Mumbai, ASTM A182 F5 Flange Manufacturers In Mumbai, India.

ASTM A182 Grade F5 Pressure Rating


ANSI/ASME B16.34 ANSI PRESSURE RATING
Temperature °F Class 150 Class 300 Class 400 Class 600 Class 900 Class 1500 Class 2500
-20 to 100 265 695 925 1390 2085 3470 5785
200 260 680 905 1360 2035 3395 5660
300 230 655 870 1305 1955 3260 5435
400 200 640 855 1280 1920 3200 5330
500 170 620 830 1245 1865 3105 5180
600 140 605 805 1210 1815 3025 5040
650 125 590 785 1175 1765 2940 4905
700 110 570 755 1135 1705 2840 4730
750 95 530 710 1065 1595 2660 4430
800 80 510 675 1015 1525 2540 4230
850 65 485 650 975 1460 2435 4060
900 50 450 600 900 1350 2245 3745
950 35 280 375 560 845 1405 2345
1000 20 165 220 330 495 825 1370
