Metallect steel Industries

Check Buttweld Reducing Tee Weight In Kg And Stainless Steel Equal Tee Dimensions In MM.


Pipe Tee is a kind of a fitting that is T-shaped and is used in piping systems in industries such as pulp/paper, Textile, Refining, Marine, Automotive, Industrial equipment, Waste treatment, Chemical processing, Petroleum, Utilities/power generation as well as Gas compression and distribution industries. The ASME B16.9 Tee is produced with two outlets, at 90° to the connection to the main pipeline. Since the fitting is a short piece of pipe with a lateral outlet, it is referred to as an ASME B16.9 Carbon Steel Lateral Tee. Pipe Tee is used to connect pipelines with pipes in a system at a right angle. Pipe Tees are typically used as pipe fittings. They are made of various materials for instance - Steel, Stainless Steel, Carbon steel, Brass, Copper, Aluminium, etc.


ASME B16.9 Tee

ASME B16.9 Tee

Equal Tee Pipe Fitting

Equal Tee Pipe Fitting

Buttweld Reducing Tee

Buttweld Reducing Tee



What is ASME B16.9 Tee?


The ASME B16.9 Equal Tee Fitting is available in various sizes ranging from NPS 1/2 through 48. To improve the surface and corrosion resistance properties the Unequal Tee Pipe Fitting is finished or surface treated. Treatments such as Galvanization, Nickel plating, White coating, Electroplating, Black cast, Gold finish etc are performed on the Stainless Steel Equal Tee. Pipe tees are extensively used in pipeline systems, where they aid in the transport two-phase fluid mixtures. In addition to the overall Buttweld Reducing Tee Dimensions, the ASME B16.9 also covers tolerances, ratings, testing, and markings for wrought factory-made butt-welding fittings.


Mild Steel Unequal Tee Weight Chart


Normal Pipe Size LBS Kilogram
1/2 0.35 0.16
3/4 0.45 0.2
1 0.75 0.34
1.1/4 1.3 0.59
1.1/2 2 0.91
2 3.5 1.59
2.1/2 6 2.72
3 7 3.18
3.1/2 9 4.08
4 12 5.44
5 21 9.53
6 34 15.42
8 55 24.95
10 85 38.56
12 120 54.43
14 165 74.84
16 195 88.45
18 249 112.94
20 342 155.13
22 414 187.79
24 528 239.5
26 770 349.27
30 1060 480.81
36 1490 675.85
NPS LBS KG

En 10253 Equal Tee Dimensions Chart


En 10253 Equal Tee Dimensions Chart

NPS Outside diameter Of ASME B16.9 Tee
at bevel
Center-to-End
Run (C) Outlet(M)
1/2" 21.3 25 25
3/4" 26.7 29 29
1" 33.4 38 38
1 1/4" 42.2 48 48
1 1/2" 48.3 57 57
2" 60.3 64 64
2 1/2" 73.0 76 76
3" 88.9 86 86
3 1/2" 101.6 95 95
4" 114.3 105 105
5" 141.3 124 124
6" 168.3 143 143
8" 219.1 178 178
10" 273.0 216 216
12" 323.8 254 254
14" 355.6 279 279
16" 406.4 305 305
18" 457.0 343 343
20" 508.0 381 381
22" 559.0 419 419
24" 610.0 432 432

Biggest Manufacturers Of ASME B16.9 Carbon Steel Lateral Tee In India, Check Unequal Tee Pipe Fitting Price List, Check Our Global Sales Network For 4 inch And 8 inch Equal Tee Din2615 In Mumbai.


Check Carbon Steel Reducing Tee Price List.


SR NO Description PRICE PAR PICE IN (USD$)
1 Stainless Steel A403, Carbon Steel A234, Seamless, SCh40 * SCh80, Equal Tee: Buttweld, ASME B16 9 / ASME B16.9 $19.56
2 Equal Tee : SCh80 * SCh120, 1-1/2 x 1-1/2 x 1 in. Weld, Buttweld, ASME B16 9 / ASME B16.9, Stainless Steel A403, Carbon Steel A234, Seamless. $20.98
3 2 x 2 x 1-1/2 Inch. Schedule 10 * Schedule 40, Reducing Tee, Seamless, 4 x 2 NPS, Stainless Steel A403, ASME B16.9 / ASME B16.9 Buttweld $32.67
4 4 x 2 Inch. ASME B16.9 / ASME B16.9 ButtWeld, Carbon Steel Reducing Tee A234, Schedule 10 * Schedule 40. $34.02
5 Lateral Tee: 10 X 8 NPS, ASTM WPB, Seamless, Be, Nace Mr-0175 Sch20 X Sch20, Sch40 X Sch40, ASME B16.9 / ASME B16 9 Buttweld $22.98

Please note this is an approx Price of ASME B16.9 Equal Tee in Mumbai, India. For final Stainless Steel Reducing Tee Price List Please Call on +91 22 23852619 Send Us Mail or drop an Email to msteel@vsnl.net.


Metallect Steel provide Multiple Payment Options Of ASME B16.9 Reducing Tee, We Provide Reducing Tee Machine In India, We are supplying Stainles Steel Lateral Wye In India.


Buttweld Equal Tee Pipe Fitting Specification


Chek Specifications Of: ASME B16.9 Tee
Check Standard Of Stainless Steel Tee: ASME B16.9, JISB2311, BS4504, BS4504, BS1560, BS10, JISB2312, JISB2313, ASME B16.47, ASME B16.38, MSS-SP-43, ANSI B16.28, BS, GB, ISO, DIN, ASME B16.25, MSS SP-75 DIN2605
Bending Radius : Radius=1D, 2D, 3D, 5D, 6D, 8D, 10D
Manufacturers Process Of ASME B16.9 Tee: Push, Press, forge, Cast, Marking, Packing In Boxes For Sale.
Standard Size Of: SLMS Buttweld Unequal Tee : To 1/2″ – 10″
Weld Reducing Tee: To 1/2″ – 48″
Types Of Elbow 90 Sch 40 SMLS / Fabricated Fittings / ERW / Welded Fitting / BW
Thickness Chart: SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140
Size Range : ½" NB to 24" NB in Sch10s, Sch40s, Sch80s, Sch160s
Mills And Origin Of Stainless Steel lateral Wye: Russian, India, Japanese, USA
Industries For Use : Petrochemical Industry
Oil And Gas Industry
Nuclear Power Plant

ASME B16.9 Stainless Steel Tee Types


ASME B16.9 Equal Tee Pipe Fitting 1 in. Schedule 40

ASME B16.9 Equal Tee Pipe Fitting 1 in. Schedule 40

1/2 in. Buttweld Sch 10 304L Bw Equal Tee ASME B16.9

1/2 in. Buttweld Sch 10 304L Bw Equal Tee ASME B16.9

3 inch. 316L Sch 10 * 60 Seamless Equal Tee

3 inch. 316L Sch 10 * 60 Seamless Equal Tee

16 in. Schedule 20 Stainless Steel Tee Fittings

16 in. Schedule 20 Stainless Steel Tee Fittings

ANSI B16.9 Pipe Reducing Tee Fittings

ANSI B16.9 Pipe Reducing Tee Fittings

4 X 3 Inch Black Pipe Reducing Tee

4 X 3 Inch Black Pipe Reducing Tee

ASTM A860 WPHY42, BW Reducing Tee En 10253

ASTM A860 WPHY42 BW Reducing Tee En 10253

BW, SMLS, DN450 x DN200 Galvanised Reducing Tee

BW, SMLS, DN450 x DN200 Galvanised Reducing Tee

1 in. Sch40 304 Lateral Tee Pipe Fitting

1 in. Sch40 304 Lateral Tee Pipe Fitting

1-1/2 x 1-1/2 x 1/2 in. Seamless Lateral Tee B16.9

1-1/2 x 1-1/2 x 1/2 in. Seamless Lateral Tee B16.9

1 x 1 x 1/2 in. Weld Sch 10 316L Lateral Wye Fitting

1 x 1 x 1/2 in. Weld Sch 10 316L Lateral Wye Fitting

Schedule 40 A105 Carbon Steel Lateral Wye

Schedule 40 A105 Carbon Steel Lateral Wye


We deliver high quality Seamless/ Welded ASME B16.9 Tee, Check Reducing Tee Specification & ASME B16.9 45 Degree Lateral Tee Size, We offer Grooved Equal Tee schedule 40 Fastest Delivery And Best Price.

Reducing Tee Dimensions ASME B16 9


Reducing Tee Dimensions ASME B16 9

NPS Outside diameter Of ASME B16.9 Reducing Tee
at bevel
Center-to-End
Run Outlet Run Outlet Run (C) Outlet (M)
1/2" 1/4"
3/8"
21.3 13.7
17.3
25 25
3/4" 3/8"
1/2"
26.7 17.3
21.3
29 29
1" 1/2"
3/4"
33.4 21.3
26.7
38 38
1 1/4" 1/2"
3/4"
1"
42.2 21.3
26.7
33.4
48 48
1 1/2" 1/2"
3/4"
1"
1 1/4"
48.3 21.3
26.7
33.4
42.2
57 57
2" 3/4"
1"
1 1/4"
1 1/2"
60.3 26.7
33.4
42.2
48.3
64 44
51
57
60
2 1/2" 1"
1 1/4"
1 1/2"
2"
73.0 33.4
42.2
48.3
60.3
76 57
64
67
70
3" 1 1/4"
1 1/2"
2"
2 1/2"
88.9 42.2
48.3
60.3
73.0
86 70
73
76
83
3 1/2" 1 1/2"
2"
2 1/2"
3"
101.6 48.3
60.3
73.0
88.9
95 79
83
89
92
4" 1 1/2"
2"
2 1/2"
3"
3 1/2"
114.3 48.3
60.3
73.0
88.9
101.6
105 86
89
95
98
102
5" 2"
2 1/2"
3"
3 1/2"
4"
141.3 60.3
73.0
88.9
101.6
114.3
124 105
108
111
114
117
6" 2 1/2"
3"
3 1/2"
4"
168.3 73.0
88.9
101.6
114.3
141.3
143 121
124
127
130
137
8" 3 1/2"
4"
5"
6"
219.1 101.6
114.3
141.3
168.3
178 152
156
162
168
10" 4"
5"
6"
8"
273.0 114.3
141.3
168.3
219.1
216 184
191
194
203
12" 5"
6"
8"
10"
323.8 141.3
168.3
219.1
273.0
254 216
219
229
241
14" 6"
8"
10"
12"
355.6 168.3
219.1
273.0
323.8
279 238
248
257
270
16" 6"
8"
10"
12"
14"
406.4 168.3
219.1
273.0
323.8
355.6
305 264
273
283
295
305
18" 8"
10"
12"
14"
16"
457.0 219.1
273.0
323.8
355.6
406.4
343 298
308
321
330
330
20" 8"
10"
12"
14"
16"
18"
508.0 219.1
273.0
323.8
355.6
406.4
457.0
381 324
333
346
356
356
368
22" 10"
12"
14"
16"
18"
20"
559.0 273.0
323.8
355.6
406.4
457.0
508.0
419 359
371
381
381
394
406
24" 10"
12"
14"
16"
18"
20"
22"
610.0 273.0
323.8
355.6
406.4
457.0
508.0
559.0
432 384
397
406
406
419
432
432

View ASME B16.9 Equal Tee Fitting And Reducing Tee Dimensions In MM, Check Difference Between BW Equal Tee ANSI B16.9 And Unequal Tee Pipe Fitting, An ISO certified 45 Degree Pipe Fitting Lateral Tee Manufacturers in India.

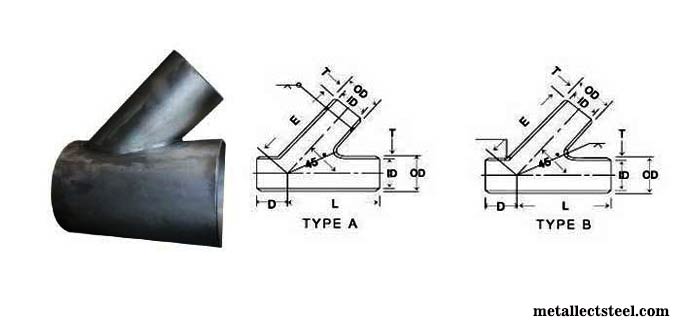

Dimensions Of 45 Degree Lateral Pipe Fitting


Dimensions Of 45 Degree Lateral Pipe Fitting

NPS TYPE Outside
Diameter OD
STD X – S Nominal Pipe Size
E & L D T ID E & L D T ID
1

B
B
B
1.315
1.660
1.900
5.75
6.25
7.00
1.75
1.75
2.00
0.133
0.140
0.145
1.049
1.380
1.610
6.50
7.25
8.50
2.00
2.25
2.50
0.179
0.191
0.200
0.957
1.278
1.500
1

2

3
A/B
B
B
2.375
2.875
3.500
8.00
9.50
10.00
2.50
2.50
3.00
0.154
0.203
0.216
2.067
2.469
3.068
*8.00
**9.00
10.50
11.00
2.50
2.50
3.00
0.128
0.276
0.300
1.939
2.323
2.900
2

3

4
5
B
A/B
B
4.000
4.500
5.562
11.50
12.00
13.50
3.00
3.00
3.50
0.226
0.237
0.258
3.548
4.026
5.047
12.50
*12.00
**13.50
15.00
3.00
3.00
3.50
0.318
0.337
0.375
3.364
3.826
4.813

4
5
6
8
10
A/B
B
B
6.625
8.625
10.750
14.50
17.50
20.50
3.50
4.50
5.00
0.280
0.322
0.365
6.065
7.981
10.020
*14.50
**17.50
20.50
24.00
*3.50
**4.00
5.00
5.50
0.432
0.500
0.500
5.761
7.625
9.750
6
8
10
12
14
16
B
B
B
12.750
14.000
16.000
24.50
27.00
30.00
5.50
6.00
6.50
0.375
0.375
0.375
12.000
13.250
15.250
27.50
31.00
34.50
6.00
6.50
7.50
0.500
0.500
0.500
11.750
13.000
15.000
12
14
16
18
20
24
B
B
B
18.000
20.000
24.000
32.00
35.00
40.50
7.00
8.00
9.00
0.375
0.375
0.375
17.250
19.250
23.250
37.50
40.50
47.50
8.00
8.50
10.00
0.500
0.500
0.500
17.000
19.000
23.000
18
20
24
