View Stainless Steel Concentric Reducer Weight Chart, Supplier Of Small-quantity Schedule 80 Eccentric Pipe Reducer In Mumbai, One Stop Shop For All Buttweld Concentric Reducer Sch 80 * Sch 120 In India.


What is ASME B16.9 Reducer?


A Schedule 80 Eccentric Pipe Reducer is to be used at the suction side of pumps, which in turn will ensure that air does not accumulate in the pipe. The subtle accumulation of air in a concentric reducer could result in a large bubble. The formation of a large bubble in the ASME B16.9 concentric reducer fitting is what could eventually cause the pump to stall or it could cause cavitation when drawn into the pump. Stainless Steel Concentric Reducer Dimensions are useful when there is a shift in diameter between pipes as well as in the presence of cavitation. Unlike eccentric reducer fittings, an ANSI B16.9 Buttweld Concentric Reducer will have a common centre line.


Check Stainless Steel Concentric Reducer Price List.


SR NO Description PRICE PAR PICE IN (USD$)
1 14 x 8 in. Plain End Concentric Reducer, BW, ASME B16.9 ASTM A403 304, Sch10 X Sch20 $75.56
2 Ecc Reducer: 1 x 3/4 in. NPS X 4NPS, ASTM WPB, SMLS, Buttweld, Sch40 x sch40, ASME B16.9. $34.98
3 Conc Reducer: 12 x 10 in, 4NPS X 3NPS, ASTM A403 F304, SMLS, Buttweld, Sch40 x sch80, ASME B16.9 $45.67
4 Ecc Reducer: 8 x 12 in, 6NPS X 3NPS, SMLS, BW, ASTM A403 F316, Sch10 x sch120, ASME B16 9 / ASME B16.9 $39.67
5 Conc Reducer : 1 x 1/2 in. Schedule 40 04L Ad 1 x 1/2 in. Schedule 80 304L, Buttweld, ASME B16 9 $41.57

Please note this is an approx Price of ASME B16.9 Stainless Steel Eccentric Reducer in Mumbai, India. For final Carbon Steel Concentric Reducer Price List Please Call on +91 22 23852619 Send Us Mail or drop an Email to sales@metallectsteel.com.


Suppliers of ASME B16.9 Reducer, MSS SP-75 ASME B16 9 Concentric Reducer offer Fastest Delivery, Looking for the best 6x4 Grooved Eccentric Reducer in India? Buy from oldest Eccentric Reducer Fitting Manufacturers.


Carbon Steel Eccentric Reducer Specification


Specifications : ASME B16.9 Reducer
Manufacturers Process : Check All Manufacturers Process = Push, Press, forge, Cast, Marking, Packing In Boxes For Sale.
Bending Radius : Radius = 1D, 2D, 3D, 5D, 6D, 8D, 10D
Connection Type : Welding
Standard : ASME B16.9, BS10, JISB2312, JISB2313, ASME B16.47, ASME B16.38, MSS-SP-43, JISB2311, BS4504, BS4504, BS1560, ANSI B16.28, ASME B16.25, MSS SP-75 DIN2605, BS, GB, ISO, DIN
Size Chart : SLMS Buttweld Ecc Reducer : To 1/2″ – 10″
Weld Con Reducer: To 1/2″ – 48″
Type : SMLS / Fabricated Fittings / ERW / Welded Fitting / BW
Size Range : ½" NB to 24" NB in Schedule 10s, Schedule40s, Schedule 80s, Schedule 160s
Industries For Use : Nuclear Power Plant
Oil And Gas Industry
Petrochemical Industry
Thickness :: SCH10, 20, 30, STD 40, 60, XS, 80, 100, 120, 140
Origin And Mills : Russian, India, Japanese, USA

ASME B16.9 Buttweld Pipe Reducer Types


1-1/2 x 1 inch. Polished Concentric Pipe Reducer

1-1/2 x 1 inch. Polished Concentric Pipe Reducer

12 x 10 in. Schedule 40S 316L Concentric Swage Reducer

12 x 10 in. Schedule 40S 316L Concentric Swage Reducer

14 x 8 in. Plain End Sch 10S Stainless Steel Concentric Reducer

14 x 8 in. Plain End Sch 10S Stainless Steel Concentric Reducer

6 x 4 in. Sch 10 304L Grooved Concentric Reducer

6 x 4 in. Sch 10 304L Grooved Concentric Reducer

4 X 3 BW A403 316L Concentric Weld Reducer

4 X 3 BW A403 316L Concentric Weld Reducer

Type B A403 304 Concentric Pipe Fittings

Type B A403 304 Concentric Pipe Fittings

ASTM A234 WPB Ecc Reducer

ASTM A234 WPB Ecc Reducer

SCH 80, BW Copper Eccentric Reducer

SCH 80, BW Copper Eccentric Reducer

SCH STD, 8 Inch×4 Inch, A234 WPB 6x4 Eccentric Reducer

SCH STD, 8 Inch×4 Inch, A234 WPB 6x4 Eccentric Reducer

6x4 Mild Steel Eccentric Reducer En 10253 2

6x4 Mild Steel Eccentric Reducer En 10253 2

SCH 40, BW Stainless Steel Eccentric Reducer

SCH 40, BW Stainless Steel Eccentric Reducer

ANSI B16.9 WPHY 52 Eccentric Buttweld Reducer

ANSI B16.9 WPHY 52 Eccentric Buttweld Reducer


Schedule 80 Concentric Reducer ASME b16.9 Dimensions


Schedule 80 Concentric Reducer ASME b16.9 Dimensions

Code RCD REISO Ø BIG Ø SMALL HEIGHT H MM THEORETICAL WEIGHT KG
DN D MM Thickness S MM DN d MM Thickness S MM
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1"1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1"1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1"1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1"1/4 42.4 2.6 0.32
60 48 1"1/2 48.3 2.6 0.33
76 33 2"1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1"1/4 42.4 2.6 0.47
76 48 1"1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1"1/4 42.4 2.6 90 0.55
89 48 1"1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2"1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1"1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2"1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2"1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2"1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

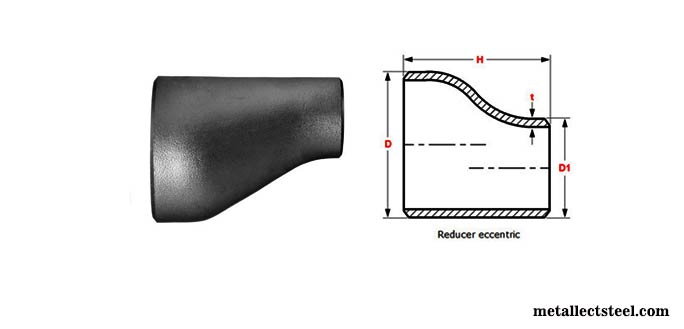

Sch 40 Eccentric Reducer Dimensions In MM


Sch 40 Eccentric Reducer Dimensions In MM

Code RCD REISO Ø BIG Ø SMALL HEIGHT H MM THEORETICAL WEIGHT KG
DN D MM Thickness S MM DN d MM Thickness s MM
27 21 3/4 26.9 2.3 1/2 21.3 2.0 38 0.08
33 21 1 33.7 2.6 1/2 21.3 2.0 50 0.09
33 27 3/4 26.9 2.3 0.09
42 21 1″1/4 42.4 2.6 1/2 21.3 2.0 50 0.12
42 27 3/4 26.9 2.3 0.13
42 33 1 33.7 2.6 0.14
*48 21 1″1/2 48.3 2.6 1/2 21.3 2.0 64 0.18
48 27 3/4 26.9 2.3 0.19
48 33 1 33.7 2.6 0.20
48 42 1″1/4 42.4 2.6 0.20
60 27 2 60.3 2.9 3/4 26.9 2.3 76 0.30
60 33 1 33.7 2.6 0.31
60 42 1″1/4 42.4 2.6 0.32
60 48 1″1/2 48.3 2.6 0.33
76 33 2″1/2 76.1 2.9 1 33.7 2.6 90 0.40
76 42 1″1/4 42.4 2.6 0.47
76 48 1″1/2 48.3 2.6 0.48
76 60 2 60.3 2.6 0.49
89 42 3 88.9 3.2 1″1/4 42.4 2.6 90 0.55
89 48 1″1/2 48.3 2.6 0.61
89 60 2 60.3 2.9 0.62
89 76 2″1/2 76.1 2.9 0.63
114 48 4 114.3 3.6 1″1/2 48.3 2.6 100 0.85
114 60 2 60.3 2.9 0.98
114 76 2″1/2 76.1 2.9 1.00
114 89 3 88.9 3.2 1.02
139 60 5 139.7 4.0 2 60.3 2.9 127 1.60
139 76 2″1/2 76.1 2.9 1.70
139 89 3 88.9 3.2 1.74
139 114 4 114.3 3.6 1.76
*168 76 6 168.3 4.5 2″1/2 76.1 2.9 140 2.60
168 89 3 88.9 3.2 2.70
168 114 4 114.3 3.6 2.82
168 139 5 139.7 4.0 2.94
219 114 8 219.1 6.3 4 114.3 3.6 152 5.03
219 139 5 139.7 4.0 5.12
219 168 6 168.3 4.5 5.18
*273 114 10 273.0 6.3 4 114.3 3.6 178 7.00
*273 139 5 139.7 4.0 7.20
273 168 6 168.3 4.5 7.40
273 219 8 219.1 6.3 7.55
323 168 12 323.9 7.1 6 168.3 4.5 203 11.00
323 219 8 219.1 6.3 11.10
323 273 10 273 6.3 11.20

Held wide stock of Stainless Steel Eccentric Reducer, Check Din 2616 BW Concentric Reducer Material Specification, We provide ASME B16.9 Reducer Expert Cutting Service In Mumbai, Stockit Of ASME B16 9 Eccentric Reducer.

Concentric And Ecc Reducer Dimensional Tolerances


NPS 1/2 to 2.1/2 3 to 3.1/2 4 5 to 8
Outside Diameter
at Bevel (D)
+ 1.6
– 0.8
1.6 1.6 + 2.4
– 1.6
Inside Diameter at End 0.8 1.6 1.6 1.6
Overall Length (H) 2 2 2 2
Nominal Pipe Size 10 to 18 20 to 24 26 to 30 32 to 48
Outside Diameter
at Bevel (D)
+ 4
– 3.2
+ 6.4
– 4.8
+ 6.4
– 4.8
+ 6.4
– 4.8
Inside Diameter at End 3.2 4.8 + 6.4
– 4.8
+ 6.4
– 4.8
Overall Length (H) 2 2 5 5

We deliver high quality Hygienic Con Reducer In India, Check 4 X 3 Concentric Reducer Dimensions And Weight Chart, En 10253 2 Eccentric Reducer Standard Size, Concentric Weld Reducer Equivalent Length.

ANSI B16.9 BW Pipe Reducer Weight Chart



Nominal Size Diameter
Outside Diameter
End to End
D1*D2
DN Normail Pipe Size Series A Series B H
20*15 3/4*1/2 26.9*21.3 25*18 38
20*10 3/4*3/8 26.9*17.3 25*14 38
25*20 1*3/4 33.7*26.9 32*25 51
25*15 1*1/2 33.7*21.3 32*18 51
32*25 1.1/4*1 42.4*33.7 38*32 51
32*20 1.1/4*3/4 42.4*26.9 38*25 51
32*15 1.1/4*1/2 42.4*21.3 38*18 51
40*32 1.1/2*1.1/4 48.3*42.4 45*38 64
40*25 1.1/2*1 48.3*33.7 45*32 64
40*20 1.1/2*3/4 48.3*26.9 45*25 64
40*15 1.1/2*1/2 48.3*21.3 45*18 64
50*40 2*1.1/2 60.3*48.3 57*45 76
50*32 2*1.1/4 60.3*42.4 57*38 76
50*25 2*1 60.3*33.7 57*32 76
50*20 2*3/4 60.3*26.9 57*25 76
65*50 2.1/2*2 73.0*60.3 76*57 89
65*40 2.1/2*1.1/2 73.0*48.3 76*45 89
65*32 2.1/2*1.1/4 73.0*42.4 76*38 89
65*25 2.1/2*1 73.0*33.7 76*32 89
80*65 3*2.1/2 88.9*73.0 89*76 89
80*50 3*2 88.9*60.3 89*57 89
80*40 3*1.1/2 88.9*48.3 89*45 89
80*32 3*1.1/4 88.9*42.4 89*38 89
90*80 3.1/2*3 101.6*88.9 - 102
90*65 3.1/2*2.1/2 101.6*73.0 - 102
90*50 3.1/2*2 101.6*60.3 - 102
90*40 3.1/2*1.1/2 101.6*48.3 - 102
90*32 3.1/2*1.1/4 101.6*42.4 - 102
100*90 4*3.1/2 114.3*101.6 - 102
100*80 4*3 114.3*88.9 108*89 102
100*65 4*2.1/2 114.3*73.0 108*76 102
100*50 4*2 114.3*60.3 108*57 102
100*40 4*1.1/2 114.3*48.3 108*45 102
125*100 5*4 141.3*114.3 133*108 127
125*90 5*3.1/2 141.3*101.6 - 127
125*80 5*3 141.3*88.9 133*89 127
125*65 5*2.1/2 141.3*73.0 133*76 127
125*50 5*2 141.3*60.3 133*57 127
150*125 6*5 168.3*141.3 159*133 140
150*100 6*5 168.3*114.3 159*108 140
150*90 6*3.1/2 168.3*101.6 - 140
150*80 6*3 168.3*88.9 159*89 140
150*65 6*2.1/2 168.3*73.0 159*76 140
200*150 8*6 219.1*168.3 219*159 152
200*125 8*5 219.1*141.3 219*133 152
200*100 8*4 219.1*114.3 219*108 152
200*90 8*3.1/2 219.1*101.6 - 152
250*200 10*8 273.0*219.1 273*219 178
250*150 10*6 273.0*168.3 273*159 178
250*125 10*5 273.0*141.3 273*133 178
250*100 10*4 273.0*114.3 273*108 178
300*250 12*10 323.9*273.1 325*273 203
300*200 12*8 323.9*219.1 325*219 203
300*150 12*6 323.9*168.3 325*159 203
300*125 12*5 323.9*141.3 325*133 203
350*300 14*12 355.6*323.9 377*325 330
350*250 14*10 355.6*273.0 377*273 330
350*200 14*8 355.6*219.1 377*219 330
350*150 14*6 355.6*168.3 377*159 330
400*350 16*14 406.4*355.6 426*377 356
400*300 16*12 406.4*323.9 426*325 356
400*250 16*10 406.4*273.0 426*273 356
400*200 16*8 406.4*219.1 426*219 356
450*400 18*16 457*406.4 478*426 381
450*350 18*14 457*355.6 478*377 381
450*300 18*12 457*323.9 478*325 381
450*250 18*10 457*273.0 478*273 381
500*450 20*18 508*457 529*478 508
500*400 20*16 508*406.4 529*426 508
500*350 20*14 508*355.6 529*377 508
500*300 20*12 508*323.9 529*325 508
550*500 22*20 559*508 - 508
550*450 22*18 559*457 - 508
550*400 22*16 559×406.4 - 508
550*350 22*14 559*355.6 - 508
600*550 24*22 610*559 - 508
600*500 24*20 610*508 630*529 508
600*450 24*18 610*457 630*478 508
600*400 24*22 610*406.4 630*426 508
650*600 26*24 660*610 - 610
650*550 26*22 660*559 - 610
650*500 26*20 660*508 - 610
650*450 26*18 660*457 - 610
700*650 28*26 711*660 - 610
700*600 28*24 711*610 720*630 610
700*550 28*22 711*559 - 610
700*500 28*20 711*508 720*530 610
750*700 30*28 762*711 - 610
750*650 30*26 762*660 - 610
750*600 30*24 762*610 - 610
750*550 30*22 762*559 - 610
800*750 32*30 813*762 - 610
800*700 32*28 813*711 820*720 610
800*650 32*26 813*660 - 610
800*600 32*24 813*610 820*630 610
850*800 34*32 864*813 - 610
850*750 34*30 864*762 - 610
850*700 34*28 864*711 - 610
850*650 34*26 864*660 - 610
900*850 36*34 914*864 - 610
900*800 36*32 914*813 920*820 610
900*750 36*30 914*762 - 610
900*700 36*28 914*711 920*720 610
950*900 38*36 965*914 - 610
950*850 38*34 965*864 - 610
950*800 38*32 965*813 - 610
950*750 38*30 965*762 - 610
1000*950 40*38 1016*965 - 610
1000*900 40*36 1016*914 1020*920 610
1000*850 40*34 1016*864 - 610
1000*800 40*32 1016*813 1020*820 610
1050*1000 42*40 1067*1016 - 610
1050*950 42*38 1067*965 - 610
1050*900 42*36 1067*914 - 610
1050*850 42*34 1067*864 - 610
1100*1050 44*42 1118*1067 - 610
1100*1000 44*40 1118*1016 1120*1020 610
1100*950 44*38 1118*965 - 610
1100*900 44*36 1118*914 1220*920 610
1150*1100 46*44 1168*1118 - 711
1150*1050 46*42 1168*1067 - 711
1150*1000 46*40 1168*1016 - 711
1150*950 46*38 1168*965 - 711
1200*1150 48*46 1220*1168 - 711
1200*1100 48*44 1220*1118 1220*1120 711
1200*1050 48*42 1220*1067 - 711
1200*1000 48*40 1220*1016 1220*1020 711
