Frequently this type of flange has been referred to as a raised face due to the gasket surfaces, which is raised above the bolting circle face. This face type in an ASME B16.5 Raised Face Flange is what permits the use of a wide combination of gasket designs, including a flat ring sheet type as well as metallic composites, for instance, spiral wound and double jacketed types. One of the most easily to identified components, the Carbon Steel Raised Face Flanges Weight Chart has been commonly used in process plant based applications.


ASME B16.5 Raised Face Flange
ASME B16.5 Raised Face Flange
ANSI B16.5 Stainless Steel Rf Flange
ANSI B16.5 Stainless Steel Rf Flange

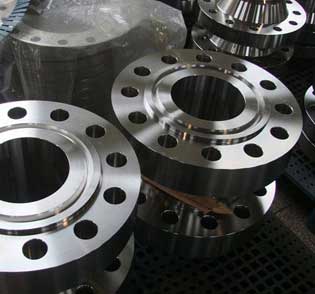

Carbon Steel Raised Face Blind Flange
Carbon Steel Raised Face Blind Flange


Check Stainless Steel Rf Flange Dimensions, Manufacting high-class 6 inch Slip On Raised Face Flange, View Carbon Steel Raised Face Flange Specification.


What Is ASME B16.5 Raised Face Flange?


The purpose of a 6 inch Slip On Raised Face Flange is to concentrate more pressure on a smaller gasket area. This in turn, effectively increases the pressure containment capacity of the joint. The Stainless Steel Rf Flange Dimensions such as the diameter and height are mentioned in standard ASME B16.5 defined, by pressure class and diameter. The pressure rating of a raised flanges will determine the height of the raised face. The ASME B16.5 standard includes Raised Face Cast Iron Flanges with the following rating class designations i.e. class 150, 300, 400, 600, 900, 1500, and 2500 produced in a size range between NPS 1/2 through NPS 24, with their requirements given in both metric and U.S units. In addition to the pressure rating and the dimensions, the ASME B16.5 standard covers ANSI B16.5 Rf Flange Material, tolerances, marking, testing, as well as methods of designating openings for flanges and flanged fittings to be used in a piping system.


ANSI B16.5 Stainless Steel Rf Flange Standard Specification


Specification : ASME B16.5 Raised Face Flange
Production Process: Forged, Heat Treated and Machined
ASME B16.5 Application: Water Pipeline Industry
Chemical Industry
