Largest Manufacturers of 600 Lb Flange in india, Check 600# Flange Dimension In MM.


The ASME B16.5 - 1996 is a standard for Pipe Flanges and Flange Fittings that could be used in piping systems of various industries. The specified ASME B16.5 Class 600 Flange covers materials, tolerances, pressure-temperature ratings, marking and testing. Moreover, this standard also covers 600 Lb Flange Dimension and methods of designating openings for pipe flanges and flanged fittings.


Using the Rtj Blind Flange Class 600 aids the worker in stopping the flow of media across a piping system. Since the blind flange does not have a bore in its centre, using this component effectively seals off valves, pumps or piping systems. A Slip on Flanges is a ring which is placed over the pipe end, with the face of the flanges extending from the end of the pipe until such a distance where a weld bead could be applied on the inside diameter.


ASME B16.5 Class 600 Flange
ASME B16.5 Class 600 Flange

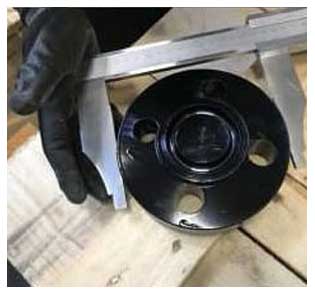

600 Lb Raised Face Flange
600 Lb Raised Face Flange
Class 600 Stainless Steel Flange
Class 600 Stainless Steel Flange


Check Dimensions Of 600 Lb Raised Face Flange & Weld Neck Flange Class 600, Get Reasonable Cost Of 600# blind flanges, Manufacturers Of Carbon Steel Class 600 Flanges Material.


What Is ASME B16.5 Class 600 Flange?


The OD of a Carbon Steel Slip On Flange Class 600 is also welded on the backside of the flange. The size range of these flanges is between NPS 1/2 through NPS 24, with the requirements of Class 600 Stainless Steel Flange has been given in both metric and U.S units. The ASME B16.5 is a standard, where requirements and recommendations for additional fittings such as the flanges bolting, flanges gaskets, and 600# Flange Pressure Ratinge joints have been detailed as well.


600 Lb Pipe Flange Dimensions


ASME B16.5 Class 600 Flange Dimensions
NPS Flange
Diameter
'O'
Diameter of
Bolt Circle
'A'
Diameter of Bolt Holes
'D'
No. of
Holes
Thk of Flange
'C'
Diametermeter at Weld Bevel Diameter of Hub
'E'
Length Through Hub Bore 'B' Diameter of
R/F
R
Depth of
Socket
F
Length
of
Threading
S/O & S/W
Y
W/N
Y
L/J
Y
S/O & S/W
B
L/J
B
1/2'' 15 95.2 66.7 15.9 4 14.3 21.3 38.1 22.2 52.4 22.2 22.3 22.9 34.9 9.5 15.9
3/4'' 20 117.5 82.5 19.0 4 15.9 26.7 47.6 25.4 57.1 25.4 27.7 28.2 42.9 11.1 15.9
1'' 25 123.8 88.9 19.0 4 17.5 33.5 54.0 27.0 61.9 27.0 34.5 35.0 50.8 12.7 17.5
1 32 133.3 98.4 19.0 4 20.6 42.2 63.5 28.6 66.7 28.6 43.2 43.7 63.5 14.3 20.6
1 40 155.6 114.3 22.2 4 22.2 48.3 69.8 31.7 69.8 31.7 49.5 50.0 73.0 15.9 22.2
2'' 50 165.1 127.0 19.0 8 25.4 60.4 84.1 36.5 73.0 36.5 62.0 62.5 92.1 17.5 25.4
2 65 190.5 149.2 22.2 8 28.6 73.1 100.0 41.3 79.4 41.3 74.7 75.4 104.8 19.0 28.6
3'' 80 209.5 168.3 22.2 8 31.8 88.9 117.5 46.0 82.5 46.0 90.7 91.4 127.0 - 30.2
3 90 228.5 184.2 22.2 8 34.9 101.6 133.4 49.3 85.7 49.3 103.4 104.1 140.0 - 31.7
4'' 100 273.0 215.9 25.4 8 38.1 114.3 152.4 54.0 101.6 54.0 116.1 116.8 157.2 - 33.3
5'' 125 330.2 266.7 28.6 8 44.4 141.2 188.9 60.3 114.3 60.3 143.8 144.5 185.7 - 36.5
6'' 150 355.6 292.1 28.6 12 47.6 168.4 222.2 66.7 117.5 66.7 170.7 171.4 215.9 - 39.7
8'' 200 419.1 349.2 31.7 12 55.6 219.2 273.0 76.2 133.3 76.2 221.5 222.2 269.9 - 44.4
10'' 250 508.0 431.8 34.9 16 63.5 273.0 342.9 85.7 152.4 111.2 276.3 277.4 323.8 - 49.2
12'' 300 558.8 488.9 34.9 20 66.7 323.8 400.0 92.1 155.6 117.3 327.1 328.2 381.0 - 55.6
14'' 350 603.2 527.0 38.1 20 69.9 355.6 431.8 93.7 165.1 127.0 359.1 360.2 412.7 - 57.1
16'' 400 685.8 603.2 41.3 20 76.2 406.4 495.3 106.4 177.8 139.7 410.5 411.2 469.9 - 63.5
18'' 450 742.9 654.0 44.4 24 82.6 457.2 546.1 117.5 184.1 152.4 461.8 462.3 533.4 - 68.3
20'' 500 812.8 723.9 44.4 24 88.9 508.0 609.6 127.0 190.5 165.1 513.1 514.3 584.2 - 73.0
24'' 600 939.8 838.2 50.8 24 101.6 609.6 717.5 139.7 203.2 184.1 615.9 615.9 692.1 - 82.5

Pressure Rating Of 600# Blind Flange


Temperature (in F°) 600#
< 10 1480
200 1360
300 1310
400 1265
500 1205
600 1135
650 1100
700 1060
750 1015
800 825
850 640
900 460
950 275
1000 170

Bolt Size Of Class 600 Threaded Flange


600LB Flange
Nominal Pipe Size
# Bolts or Studs
Diameter of Bolts or Studs
Length of Stud
1/16 RF
RTJ
1/2
4
0.50
2-1/4
-
3/4
4
0.50
2-1/2
-
1
4
0.50
2-1/2
3
1-1/4
4
0.50
2-3/4
3-1/4
1-1/2
4
0.50
2-3/4
3-1/4
2
4
0.63
3-1/4
3-3/4
2-1/2
4
0.63
3-1/2
4
3
4
0.63
3-1/2
4
3-1/2
8
0.63
3-1/2
4
4
8
0.63
3-1/2
4
5
8
0.75
3-3/4
4-1/4
6
8
0.75
4
4-1/2
8
8
0.75
4-1/4
4-3/4
10
12
0.88
4-1/2
5
12
12
0.88
4-3/4
5-1/4
14
12
1.00
5-1/4
5-3/4
16
16
1.00
5-1/4
5-3/4
18
16
1.13
5-3/4
6-1/4
20
20
1.13
6-1/4
6-3/4
24
20
1.25
6-3/4
7-1/4

Specification Of 600 Lb Flange


Specification : ASME B16.5 Class 600 Flange
Design For Size: ANSI, ASME, ASA, PN, JIS, EN, DIN, BS
Machining Equipment: Electric bevelling machine, Bending machine, Press machine, Pushing Machine, Sand-blasting machine etc
Coating Flanges Faces : Oil Black Paint, Yellow Transparent, Anti-rust Paint, Zinc Plated, Cold and Hot Dip Galvanized
Size Chart : 1/2″ (15 NB) To 48″ (1200NB)
Production Process: Forged, Heat Treated and Machined
Supporting Flanges Material: Ring Joint, Gasket, Flanges Bolts
Pressure Rating Table: Class 150 LBS, Class 300 LBS, Class 600 LBS, Class 900 LBS, Class 1500 LBS, Class 2500 LBS
Application: Natural Gas Industry
Oil And Gas Industry
Chemical Industry
Water Pipeline Industry
Nuclear Power Plant
Fabrication Industry
Standards : PN Flange, ISO Flange, JIS Flange, MSS SP44 Flange, EN-1092 Flange, BS10 Flange, ASME B16.38 Flange, UNI Flange, ASME B16.47 (Series A Flange, Series B) Flange, ASME B16.5 Flange, AWWA Flange, DIN Flange, GOST Flange
Common Types of Class 600 Flanges : 600# BLRF
Class 600 SORF
Flanges 600 LB WNRF
Class 600 RTJ
Connect Type Type: LJF, LMF, RTJ, SMF, RF, FF

Check Dimensions Of 600 Lb Raised Face Flange & Weld Neck Flange Class 600, Get Reasonable Cost Of 600# blind flange, Manufacturers Of Carbon Steel Class 600 Flange Material.


Types Of Stainless Steel 600# Flange


Class 600 Plate Flange

Class 600 Plate Flange

ANSI 600 Square Flange

ANSI 600 Square Flange

Class 600 Puddle Flange

Class 600 Puddle Flanges

ANSI 600 Flange Adapter

ANSI 600 Flange Adapter

600# Rf Threaded Flange

600# Rf Threaded Flange

ANSI B16.5 Class 600 Lap Joint Flanges

ANSI B16.5 Class 600 Lap Joint Flange

Class 600 Long Weld Neck Flanges

Class 600 Long Weld Neck Flange

ANSI/ASME B16.5 Class 600 Forged Flanges

ANSI/ASME B16.5 Class 600 Forged Flange

A105 / SS316 Forged Class 600 Expander Flange

class 600 Expander Flange

Stainless steel 304 ANSI B16.5 Class 600 Socket-weld Flanges

ANSI B16.5 Class 600 Socket-weld Flange

600# High hub Blind Flange

600# High hub Blind Flange

Welding Neck Flange ANSI B16.5 600 Lbs

Welding Neck Flanges ANSI B16.5 600 Lbs


View Wnrf Flanges Class 600 Size Chart, We provide ASME B16.5 Class 600 Flanges Expert Cutting Service In Mumbai, India, Buy Slip On Flanges Class 600 With Fastest Delivery, 600# Weld Neck Flanges Types, ASME B16.5 Class 600 Flanges Thickness.

Weight Chart Of Lap Joint Flanges Class 600


CLASS Nominal Pipe Size Slip On Threaded Socket Weld Lap Joint Blind Weld Neck
Class 600 ½ 1 1 2 1 2 2
¾ 2 2 2 2 2 2
1 2 2 2 2 2 3
3 3 3 3 3 3
3 3 3 3 4 4
2 5 5 5 5 5 6
8 8 8 8 7 10
3 9 9 9 9 9 11.5
11 12 11 11 13 12
4 13 13 13 13 17 16.5
5 15 15 15 15 20 21
6 19 19 19 19 27 26
8 30 30 30 30 47 42
10 43 43 43 43 70 54
12 64 64 64 64 123 88
14 90 90 90 105 140 114
16 106 98 98 140 180 140
18 130 130 130 160 220 165
20 165 165 165 195 285 197
22 185 185 185 245 355 225
24 220 220 220 275 430 268

Available Class 600 Threaded Flanges In Bulk, Looking For 600# Rtj Flanges At Best Price? Call Metallect Steel For 600 Lb Raised Face Flanges And ASME B16.5 Class 600 Flanges With Low Price, We Provide A Complete Range Of 600 Lb Socket Weld Flanges And Class 600 Reducing Flanges.

Size Chart Of Carbon Steel Slip On Flanges Class 600


NPS
NPS
(inch)
600#
Diammeter of
Flanges
(inch)
No.
of
Bolts
Diammeter of
Bolts
(inch)
Diammeter of
Bolt Holes
(inch)
Bolt
Circle
(inch)
1/4 3-3/8 4 1/2 0.62 2-1/4
1/2 3-1/2 4 1/2 0.62 2-3/8
3/4 3-7/8 4 1/2 0.62 2-3/4
1 4-1/4 4 1/2 0.62 3-1/8
1-1/4 4-5/8 4 1/2 0.62 3-1/2
1-1/2 5 4 1/2 0.62 3-7/8
2 6 4 5/8 0.75 4-3/4
2-1/2 7 4 5/8 0.75 5-1/2
3 7-1/2 4 5/8 0.75 6
3-1/2 8-1/2 8 5/8 0.75 7
4 9 8 5/8 0.75 7-1/2
5 10 8 3/4 0.88 8-1/2
6 11 8 3/4 0.88 9-1/2
8 13-1/2 8 3/4 0.88 11-3/4
10 16 12 7/8 1 14-1/4
12 19 12 7/8 1 17
14 21 12 1 1.12 18-3/4
16 23-1/2 16 1 1.12 21-1/4
18 25 16 1-1/8 1.25 22-3/4
20 27-1/2 20 1-1/8 1.25 25
24 32 20 1-1/4 1.38 29-1/2
