Reliable 90/10 Cu-Ni Buttweld Pipe Fittings Manufacturer In India, We Are Supplying Copper Nickel 90 10 Pipe Fittings To More Than 30 Locations Worldwide.


Each product manufactured according to ASTM B466, such as the 90/10 Copper Nickel Pipe Fittings is required to be manufactured from cast billets by either hot extrusion or piercing, following which these fittings are then subjected to cold working and annealing process. The standard tempers for the 90/10 Cu-Ni Buttweld Pipe Fittings produced in accordance with this specification are lightly drawn (H55), hard drawn (H80), soft annealed (O60) as well as hard drawn and end annealed (HE80). Certain values such as the tensile properties, Rockwell hardness, along with the test performance of these fittings are to conform to the values specified herein.

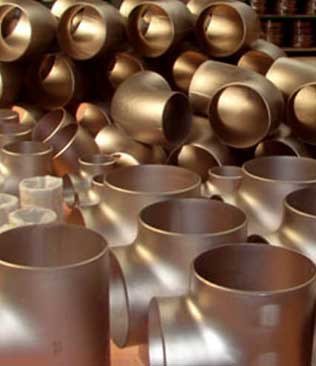

90/10 Copper Nickel Pipe Fittings
90/10 Copper Nickel Pipe Fittings

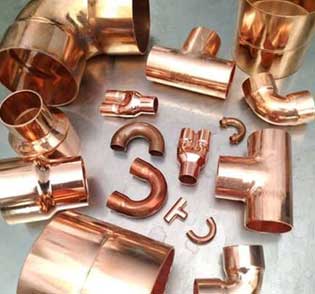

90/10 Cu-Ni Buttweld Pipe Fittings
90/10 Cu-Ni Buttweld Pipe Fittings
Cu-Ni UNS C70600 Seamless Fittings
Cu-Ni UNS C70600 Seamless Fittings


Check 90/10 Copper Nickel 45 Degree Elbow Specification, Cu-Ni UNS C70600 Seamless Fittings Equivalent Material.


What Is 90/10 Copper Nickel Pipe Fittings?


Performance requirement of the ASTM B466 Werkstoff No. 2.0872 Forged Fittings include tests like expansion, flattening, and eddy Current tests. Along with being used in high velocity waters or marine engineering applications, the 90/10 Copper Nickel $5 Degree Elbow often exhibit compatibility with being used at cryogenic temperatures in comparison to regular carbon steel alloys. Due to its natural reddish pink hue, the Cu-Ni UNS C70600 Seamless Fittings are used in architectural applications as well. Apart from exhibiting a high resistance to hydrogen embrittlement, the alloy has good microbial properties as well. Therefore many manufacturers recommend using the Copper Nickel 90 10 Pipe Fittings as a type of hygienic fitting.


90/10 Copper Nickel 45 Degree Elbow Specification


Standard Specification : 90/10 Copper Nickel Pipe Fittings
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Application: Water Pipeline Industry
Nuclear Power Plant
Natural Gas Industry
Fabrication Industry
Chemical Industry
Oil And Gas Industry
Coating Fitting Faces : Cold and Hot Dip Galvanized, Zinc Plated, Yellow Transparent, Oil Black Paint, Anti-rust Paint
Standard: JIS B2312 Fittings, MSS-SP-43 Type b Fittings , JIS B2313 Fittings , ANSI B16.9 Fittings , MSS-SP-43 Type A Fittings, MSS-SP-43 Type B Fittings , ANSI B16.28 Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Fitting Machining Equipment: Pushing Machine, Bending machine, Press machine, electric bevelling machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 300 LBS Fittings, 600 LBS Fittings, 900 LBS Fittings
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )

Cu-Ni UNS C70600 Seamless Fittings Equivalent


STANDARD WERKSTOFF NR. UNS
Copper Nickel 90/10 2.0872 C70600

Purchase ASTM B466 Werkstoff No. 2.0872 Forged Fittings Fast Delivery & Best Price, Refer 90/10 Cu-Ni Buttweld Pipe Cap Chemical Composition And Copper Nickel 90/10 Elbow Mechanical Properties.


90/10 Cu-Ni Buttweld Pipe Cap Chemical Composition


Grade Cu Mn Pb Ni Fe Zn
Cu-Ni 90-10 88.6 min 1.0 max .05 max 9-11 max 1.8 max 1 max

Copper Nickel 90/10 Elbow Mechanical Properties


Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Copper Nickel 90-10 0.323 lb/in3 at 68 F 2260 F 50000 psi 20000 psi 30 %

Contact US for Nickel Alloy Cu-Ni 90 / 10 Reducer instant delivery, View Our Complete Range Of ANSI B16.9 C70600 ASTM B366 Pipe Tee.

Types Of ASTM B466 Werkstoff No. 2.0872 Forged Fittings


90/10 Copper Nickel Elbow

90/10 Copper Nickel Elbow

90/10 Copper Nickel Tee

90/10 Copper Nickel Tee

90/10 Copper Nickel Reducer

90/10 Copper Nickel Reducer

90/10 Copper Nickel End Cap

90/10 Copper Nickel End Cap

90/10 Copper Nickel Stub End

90/10 Copper Nickel Stub End

90/10 Copper Nickel Threaded Plug

90/10 Copper Nickel Threaded Plug

90/10 Copper Nickel Socket Weld Union

90/10 Copper Nickel Socket Weld Union

90/10 Copper Nickel Cross

90/10 Copper Nickel Cross

90/10 Copper Nickel U Bend

90/10 Copper Nickel U Bend

90/10 Copper Nickel Lateral Tee

90/10 Copper Nickel Lateral Tee


Looking to buy 90/10 Copper Nickel Pipe Fittings? contact Metallect Steel, A Reliable ASME B16.9 Cu-Ni 90/10 Welded BW Fitting Manufacturers in India.

ASME B16.9 Cu-Ni 90/10 Welded BW Fitting Physical Properties


Density kg/dm³ 8.9
Melting Range °C 1100-1145
Specific Heat J/kg °K 377
Thermal Conductivity W/m°K 40
Coeff. of Linear Expansion 10-300°C 10-6/°K 17
Electrical Resistivity microhm. cm 19
Modulus of Elasticity GPa 135
Modulus of Rigidity GPa 50
