Buy Cu-Ni UNS C71500 Buttweld Fittings Best Price & Fast Delivery, Manufacturer Of Copper Nickel 70/30 Forged Pipe Fittings In India.


Grade C71500, which is a 70/30 copper nickel alloy is covered by specification ASTM B122. According to this specification, each product, in this case, 70/30 Copper Nickel Pipe Fittings are to be manufactured by either hot or cold working process These fittings may be annealed if required, in order to produce a uniform wrought form that meets the specified temper properties. The ASTM B122 specification also contains information on both the standard tempers for as well as the tensile strengths of hot rolled, cold rolled and annealed tempers of the Werkstoff No.2.0882 Copper Nickel 70/30 Elbow.

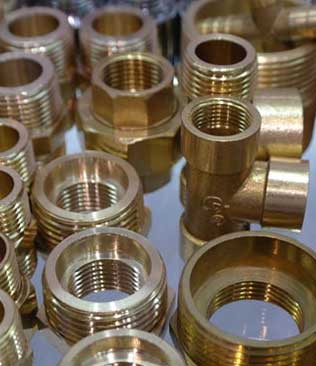

70/30 Copper Nickel Pipe Fittings
70/30 Copper Nickel Pipe Fittings
Cu-Ni UNS C71500 Buttweld Fittings
Cu-Ni UNS C71500 Buttweld Fittings
Copper Nickel 70/30 Forged Pipe Fittings
Copper Nickel 70/30 Forged Pipe Fittings


Check ASTM B122 Copper Nickel Cu-Ni 70/30 Welded Fittings Chemical Composition, Cu-Ni 70/30 Threaded Fittings Equivalent, Specification Of Cu-Ni UNS C71500 Seamless Fittings.


What Is 70/30 Copper Nickel Pipe Fittings?


A standard requirement for all products including the ASTM B122 Copper Nickel Cu-Ni 70/30 Welded Fittings is the grain size in annealed tempers. Grade 70/30 cu ni has several important characteristics that make it well suited to be used for marine engineering purposes. For instance, the UNS C71500 Cu-Ni UNS C71500 Seamless Fittings exhibits excellent corrosion and pitting resistance properties in marine environments. The corrosion resistance properties of Cu-Ni UNS C71500 Buttweld Fittings tend to be notably improved in polluted seawater while showing particularly good resistance to high velocity waters. Moreover, one cannot ignore its resistance to biofouling, in addition to its good tensile strength and toughness, all of which are required for marine environments. Because the alloy is readily weldable and fabricated, the alloy could be used to manufacture various kinds of Copper Nickel 70/30 Forged Pipe Fittings.


Cu-Ni 70/30 Welded Fittings Chemical Composition


Cu Pb Mn Fe Zn Ni
MIN 65.000 - - 0.400 - 29.000
MAX 0.500 1.000 1.000 1.000 33.000

Copper Nickel 70/30 Forged Pipe Fittings Equivalent


STANDARD WERKSTOFF NR. UNS
70/30 Copper Nickel Pipe Fittings 2.0882 C71500

Cu-Ni UNS C71500 Seamless Fittings Specification


Standard Specification : 70/30 Copper Nickel Pipe Fittings
Coating Fitting Faces : Yellow Transparent, Oil Black Paint, Cold and Hot Dip Galvanized, Zinc Plated, Anti-rust Paint
Fitting Machining Equipment: Press machine, electric bevelling machine, Bending machine, Pushing Machine, Sand-blasting machine etc
Rating Pressure: Pressure Rating Of: 300 LBS Fittings, 600 LBS Fittings, 900 LBS Fittings
Check Sizes: (SMLS UPTO 24”)
1/2” TO 36”
(Buttweld 8” TO 36” )
Thickness: View Our Thickness: Schedule 5S, SCH10, SCH20, SCH10, SCH20, SCH30, SCHTD, SCH40, SCH60, XS, SCH80, SCH100, SCH120, SCH140, SCH160.
Standard: ANSI B16.9 Fittings, MSS-SP-43 Type A Fittings, JIS B2313 Fittings, MSS-SP-43 Type B Fittings, ANSI B16.28 Fittings, JIS B2312 Fittings, MSS-SP-43 Type b Fittings
Dimensions Class: 2000#, 3000#, 6000#, 9000#
Application: Natural Gas Industry
Fabrication Industry
Chemical Industry
Water Pipeline Industry
Nuclear Power Plant
Oil And Gas Industry

Werkstoff No.2.0882 Copper Nickel 70/30 Elbow Suppliers In India, ASTM B122 70 / 30 CU-NI Elbow Stockist In India, Get at discount of Cu-Ni 70/30 Welded Pipe Fittings.


Types Of Cu-Ni UNS C71500 Buttweld Fittings


90/10 Copper Nickel Threaded Plug

90/10 Copper Nickel Threaded Plug

90/10 Copper Nickel Socket Weld Union

90/10 Copper Nickel Socket Weld Union

90/10 Copper Nickel Reducer

90/10 Copper Nickel Reducer

90/10 Copper Nickel End Cap

90/10 Copper Nickel End Cap

90/10 Copper Nickel Stub End

90/10 Copper Nickel Stub End

90/10 Copper Nickel Elbow

90/10 Copper Nickel Elbow

90/10 Copper Nickel Tee

90/10 Copper Nickel Tee

90/10 Copper Nickel Cross

90/10 Copper Nickel Cross

90/10 Copper Nickel Lateral Tee

90/10 Copper Nickel Lateral Tee

90/10 Copper Nickel U Bend

90/10 Copper Nickel U Bend


Copper Nickel 70/30 Fitting Physical Properties, Mechanical Properties Of Copper Nickel Forged Fittings, Contact US For Copper Nickel 70/30 Pipe Cap Instant Delivery.

Werkstoff No.2.0882 Copper Nickel 70/30 Elbow Mechanical Properties


Yield Strength
0.2% Proof
(MPa)
Tensile strength
(MPa)
Elongation
(% in 50mm)
Hardness
(HRB)
MIN 88 372 45.00
MAX 483 517   51

Looking to buy 70/30 Copper Nickel Pipe Fittings? contact Metallect Steel, A Reliable Copper Nickel Alloy 70 / 30 Reducer Manufacturer in India.

Cu-Ni 70/30 Threaded Fittings Physical Properties


Density kg/dm³ 8.95
Melting Range °C 1170-1240
Specific Heat J/kg °K 377
Thermal Conductivity W/m°K 29
Coeff. of Linear Expansion 10-300°C" 10-6/°K 16
Electrical Resistivity microhm. cm 34
Modulus of Elasticity GPa 152
Modulus of Rigidity GPa 56
